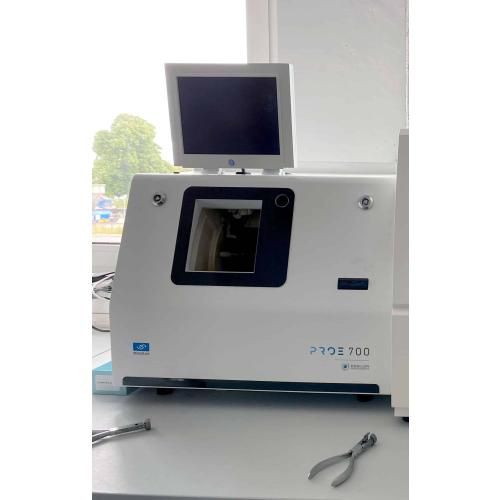

Essilor PRO-E 700 Edger

Essilor PRO E 700 edger with Neksia tracer.
Processes all organic lens materials.
Standard features: milling, grinding, grooving, drilling (30°),
mini bevel, sport bevel, step bevel, mixed bevel, polishing.

Features
Automatic or customised machining
Available finishes: bevel, high base bevel, staircase bevel, flat edge, groove, drilling, polishing, chamfering, retouching
Custom engraving with M’EYE Sign™
Shape creation with M’EYE Touch™
Chemistrie™ work
Mixed finishing methods (e.g. bevel + groove)
Retouching after machining with preservation of parameters
Tool wear indicators
Integrated self-tests and diagnostics
Touchscreen calibration
Precision adjustment: diameter, chamfer/groove position,
drilling diameter, engraving depth
Saving of working habits

Technical Details
Maximum lens diameter: 110 mm (90 mm with 10 mm off-centre)
Minimum B dimension: 17 mm (flat edge), 18.5 mm (bevel)
Colour touch screen: 10 inches
Power supply: 220–240 V / 50–60 Hz or 100–120 V / 50–60 Hz
Power consumption: 1350 W – 10 A (230 V) / 15 A (115 V)
Dimensions: W 590 mm x D 490 mm x H 700 mm
Weight: 95 kg
Noise level: 71–72 dB depending on the material
Operating temperature: +10 °C to +40 °C
Humidity: 30% to 75%
Maximum altitude: < 2000 m
Network connection: RJ45 (viewing only on the edger)

Compatible Accessories
Stylus for touch screens
Posiblock removal pliers
Triangular key
White stone for finishing wheel
Square stone for polishing wheel
Transport wedges
Accessory box containing:
22 mm and 18 x 14 mm posiblock holders
Matching stops
Lock key for tool change
Drill bits Ø 1.0 mm and Ø 0.8 mm
Milling cutters Ø 1.5 mm
Grooving wheel Ø 20 mm
Chamfer wheel
Stepped bevel wheel
Torque wrench
High base chamfer wheel
Metal ruler
Modelling clay
Adjustable wrench for tool change
Spray kit (optional)
Chip collection tray (optional)
M'Eye Sign Box kit (optional)
Essibox (optional)
Connection cables: power supply, RJ45, Essibox
Waste water drain hose with fixing ring
