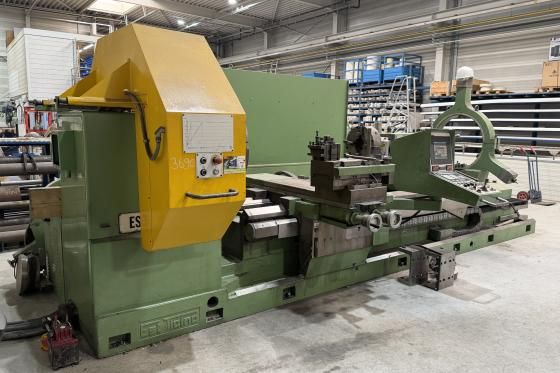

EST Ticino Engine Lathe 800 rpm ET-BM-CT 520
Ref :
2756430-3-GO
Condition :
Used
Manufacturer :
EST Ticino
Type :
Engine Lathe
Spindle Speed :
800 rpm
Model :
ET-BM-CT 520
Year(s) :
1996
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Control: Siemens Sinumerik 805
Swing over bed: Ø 1040 mm
Swing over cross slide: Ø 710 mm
Swing in the gap: Ø 1580 mm
Turning length (DBC): 3000/4500 mm
Gap length: 1500 mm
Spindle power: 40 kW
Spindle bore: 160 mm
Spindle speed: 800 rpm
Feed rate X-axis: 10,000 mm/min
Feed rate Z-axis: 10,000 mm/min
Bed width: 800 mm
Workpiece weight capacity: 3500 kg
Chuck size: 800 mm (optional up to 1500 mm)
Steady rest: 600 mm and 7800 mm
Machine length: 7500 mm
Machine width: 2200 mm
Machine height: 2200 mm
Machine weight: 11,000 kg
