EUMASPEED 14.8

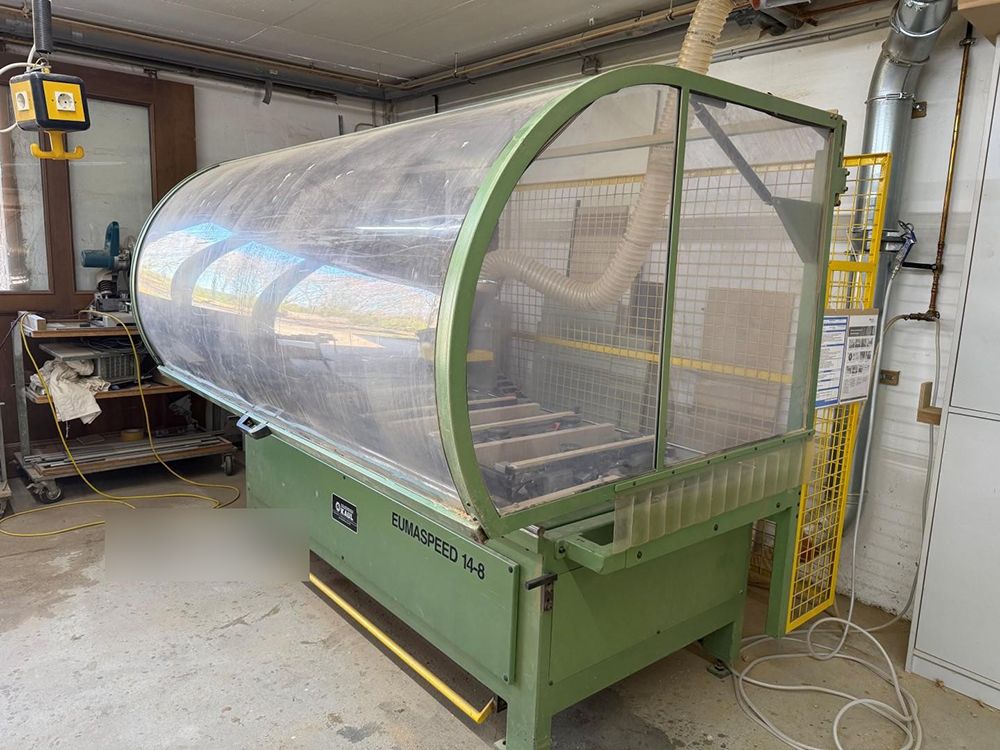

EUMACOP EUMASPEED 14.8
Machine Type: CNC Machining Centers

Technical Data:
Maximum workpiece length (plates): 1390/2800 mm
Workpiece width: 85 - 740 mm (without narrow clamping device)
Workpiece thickness: 50 mm (with drill length 70 mm)
Min. frame length: 220 mm
Maximum frame length: 2800 mm (up to Bmax 140 mm) or 1550 mm (up to Bmax 190 mm)
Maximum axis speed (X/Y): 35 m/min
Drill chuck diameter: 10 mm
Drill speed: 4400 rpm
Grooving saw maximum diameter: 100 mm
Grooving saw chuck diameter: 20 mm
Grooving saw speed: 4500 rpm
Machine dimensions (L x W x H): 2,350 x 1,750 x 1,830 mm (closed hood, otherwise H = 2,630 mm), working height 800 mm
Extraction port diameter: 2 x 100 mm, 1 x 140 mm
Compressed air connection: 3/8", 6 bar
Power supply: 380 V, 50 Hz, 5.5 kW
Weight: 980 kg
