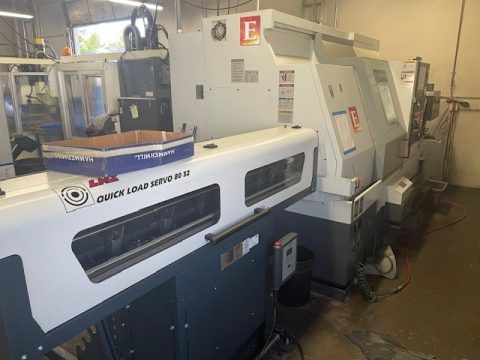

Eurotech Fanuc 32iTB CNC Control 4000 RPM TA-20-YS-640 4 Axis

Eurotech TA-20-YS-640
Year: 2021

Chuck Size: 8″
Bar Capacity: 2.6″
Swing Over Bed: 29.92″
Swing Over Slides: 23.62″
Turning Diameter: 18.11″
Distance Between Centers: 25.55″
X-Axis Travel: 12.2″
Z-Axis Travel: 25.2″
Y-Axis Travel: -1.97″ / +2.76″
B-Axis Travel: 25.2″
Feedrates (X,Z,B) 1181 IPM
Spindle Speed: 4,000 RPM
Turret: 15 Position

Sub-Spindle
Spindle Speed: 4,500 RPM
Bearing Diameter (Inside/Outside): 3.94″ / 5.9″
Spindle Nose: ASA 6″ A2
Spindle Inside Diameter: 2.4″
Bar Diameter: 2.4″
Chuck Diameter: 6.89″
Chuck Bore: 2.2″

Driven Tools
Number of Tools: 12
Tool Speed: 12,000 RPM

Equipped With:
Fanuc 32iTB CNC Control
LNS Quick Load Barfeeder
Chip Conveyor
Collet Chuck on Main Spindle
Collet Chuck on Sub Spindle
Tool Presetter
Tool Life Management Function
High Pressure Coolant Pump
Refrigerated Oil Cooling System
Parts Ejector for Sub Spindle
Coolant Through Sub Spindle
Sub Spindle
Parts Catcher
Y Axis
Live Tooling
