Euskan VSBT 175 M, Vacuum systems for fish transfer
RUSSIA and Central Asia
Fish Transfer Capacity: life fish up to 2 kg
Tank capacity: 2 x 175 л (stainless steel)
Max. Total head: 8 m
Compressor: 4 kW - 50 Hz
Power Supply: 3 x 400 V 50 Hz
Water Supply: 5-8 l/min / self priming
Capacity: 40 m³ /hour max(depending on pumping factors)

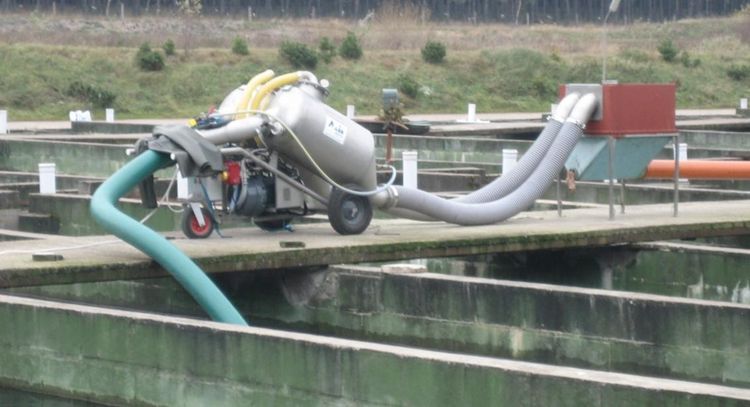

The system is built in mobile design.
There is a control box with start/stop and manual change-over of pumping cycle.
Including level sensor for automatic operation (changing cycle between filling and emptying).
Standard set includes: 6" (150 mm) suction nose for life fish, double separate outlet valve 6" (150 mm) and 6 pc. 6" (150 mm) hose clips.
There is a closed hydraulic power pack for operating the 4 way valve.
The system is СЕ approved.
The system is prepared for remote control with cable (optional).
Quick couplings on in- and outlet are included (optional).
