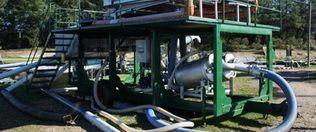

Euskan VSBT 250, Vacuum systems for life fish

Fish Transfer Capacity: life fish up to 2 kg
Tank capacity: 2 x 250 L (stainless steel)
Max. Total head: 8 m (suction + discharge)
Compressor: Samson KE180, 7,5 kW- 30-60 Hz
Power Supply: 3 x 400 V 50 Hz
Water Supply: 10 l/min at 1 bar
Capacity: 60 - 70 m³/hour

Commentary:
There is a control box with start/stop and manual change-over of pumping cycle.
The control panel is equipped with frequency converter
for soft start up of the main motor and for capacity control
(frequency band 30-60 Hz).
Including level sensor for automatic operation
(changing cycle between filling and emptying).
Standard set includes: 6" (150 mm) suction nose for life fish,
double separate outlet valve 6" (150 mm)
and и 6 pc. 6" (150 mm) hose clips.
There is a closed hydraulic power pack for operating the 4 way valve.
The system is СЕ approved.
The system is prepared for remote control with cable (optional).
Quick couplings on in- and outlet are included (optional).
