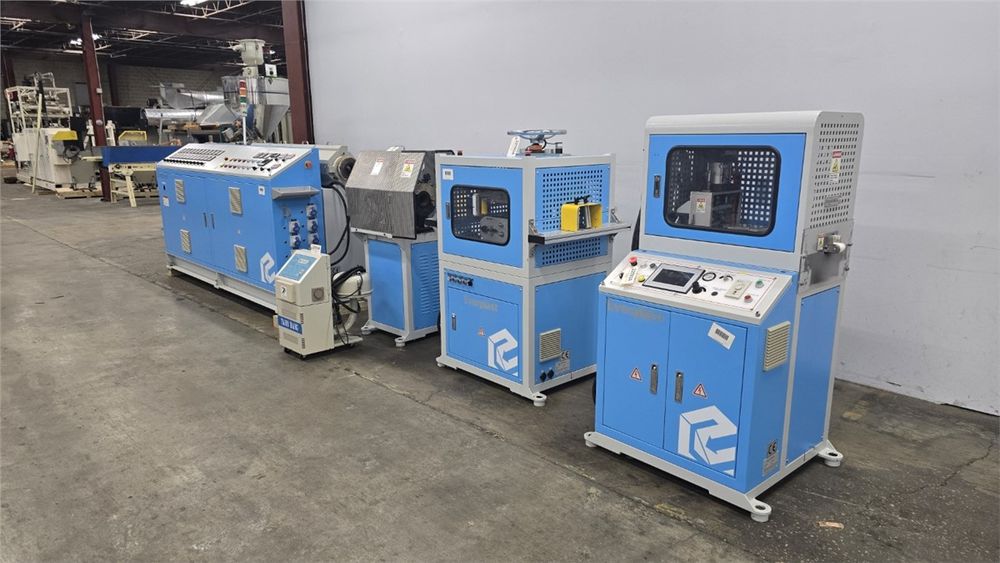

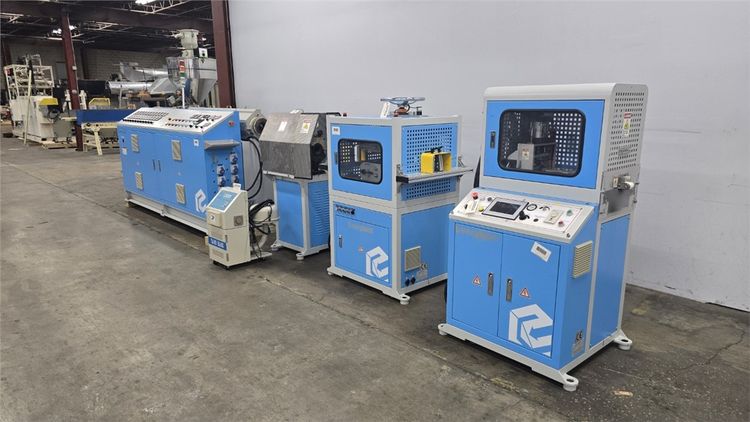

Everplast EMS-65 Extrusion Line

65mm Everplast Extrusion Line Consisting Of The Following:
65mm Everplast EMS-65 Extruder, 28:1 L/D, 30 HP
3 Barrel Zones, 3 Downstream Zones, Air Cooled
Centerline Height: 1050mm (41.34")
Screw Speed: 60 RPM
4" x 24" Everplast ETB-05 Belt Puller, 2 HP
Approx. 764 LBF Pulling Force
Approx. 164 FPM Max Speed
2.5" Wide Everplast EAC Air Cutter
HDPE Pipe, Up To 220 LB/HR Per Manufacturer
PVC Profile, Up To 154 LB/HR Per Manufacturer
12 kW Cylinder Heating
220/3/60
With Auto Loader, Type TAE-6L-CE-D3, Series 1900241
Has Melt Pump
Approximate Extruder Dimensions: 93" L x 41" W x 79" H, 2,425 LBS
Approximate Puller Dimensions: 42" L x 32" W x 60" H
Approximate Air Cutter Dimensions: 38" L x 33" W x 61" H
Approximate Melt Pump Dimensions: 38" L x 30" W x 58" H
