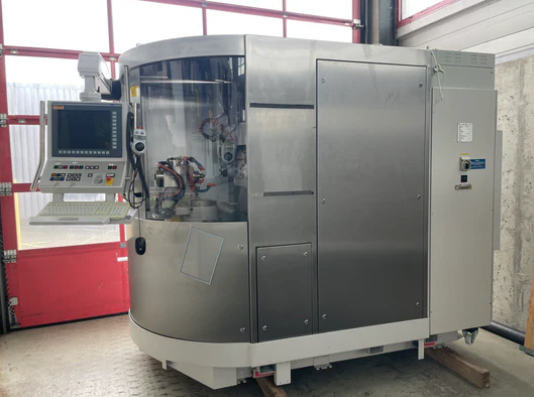

Ewag EWAMATIC LINE
Ref :
2758225-3-MT
Condition :
Used
Manufacturer :
Ewag
Model :
EWAMATIC LINE
Year(s) :
2006
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
X-Axis Travel 360 mm
Y-Axis Travel 240 mm
Z-Axis Travel 240 mm
B-Axis Rotation ±135°
Number of Axes 6
Control NUM Axium Power P2 / Windows 10
Spindles 6
Spindle Power 7.5 kW
Max Feedrate 10 m/min
Air Connection 6 bar
Voltage 3x400 V 50 Hz
Total Power 16 kVA
Machine Weight 4,000 kg
Overall Length 3,400 mm
Overall Width 2,200 mm
Overall Height 2,500 mm
Tool Setter Renishaw
Redressing Device
Oil Mist Extractor
Loading Robot Fanuc LR Mate 200iC
Fire Extinguishing System
Hydraulic Clamping Device
New Industrial PC with Windows 10
Pre-Installed Programs: Milling Cutter, Form Cutter, Step Drill
