Schneeberger Gemini DMR

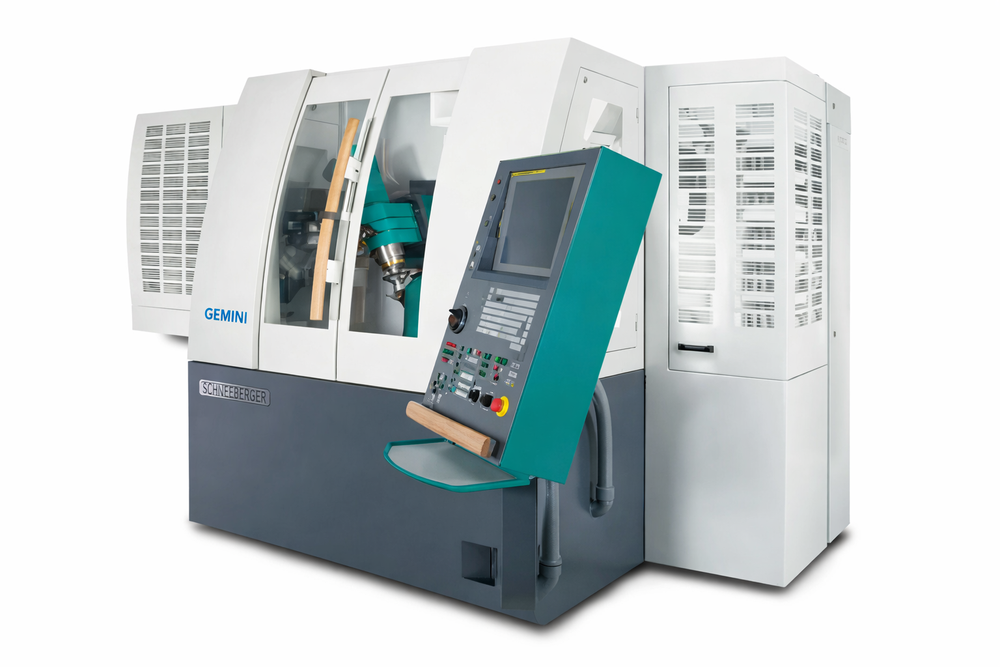

CNC Tool grinding machine SCHNEEBERGER Gemini DMR



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2014
CNC control: FANUC 31i B5
Software installed: Quinto Qg1
Colour touchscreen: Yes
Number of axes: 5
Stroke X axis: 380 [mm]
Max. Stroke speed X axis: 20000 [mm/min]
Resolution X axis: 0.0001 [mm]
Stroke Y axis: 300 [mm]
Max. Stroke speed Y axis: 5000 [mm/min]
Resolution Y axis: 0.0001 [mm]
Stroke Z axis: 280 [mm]
Max. Stroke speed Z axis: 20000 [mm/min]
Resolution Z axis: 0.0001 [mm]
Table length: 500 [mm]
Table width: 330 [mm]
Grinding spindle attachment: HSK-50
Max. grinding wheel speed: 10000 [rpm]
Grinding spindle motor power: 15 [kW]
Max. diameter grinding wheel: 250 [mm]
Weight: 8100 [Kg]


INCLUDED EQUIPMENT:

x1 grinding wheel changer with 8 positions
x1 FANUC 6-axis robot, type LR Mate 200iC 5L
x3 HEIDENHAIN linear glass scales on all X, Y, and Z axes



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Possibility of shipping Worldwide.

The information on this page has been obtained by the best of our ability. Therefore, its accuracy can not be guaranteed.







Machine for sharpening tools such as milling cutters, taps, and drills.
