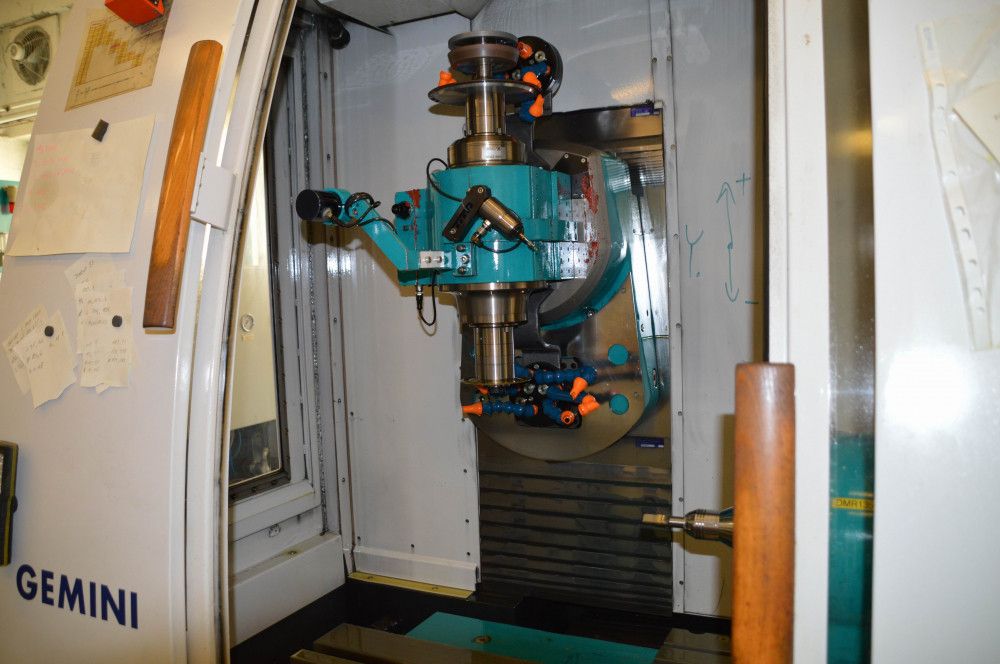

Schneeberger DMR GEMINI

5-axis CNC tool grinder
X-axis longitudinal slide, stroke 360 mm
Y-axis vertical slide, stroke 270 mm
Z-axis transverse slide, stroke 270 mm
A-axis for grinding on round, max. rpm 800 rpm
C-axis grinding spindle, 370° rotation
C-axis grinding spindle motor 15 kW, adjustable speed 500-1000 rpm
Control system Fanuc 310iA5
Standard software for production and grinding of mechanical engineering tools
Automatic central lubrication
Automatic fire extinguishing system
Hydraulic workpiece clamping
Electrostatic vapor separator
Measuring probes
UPP-Ultra Precision Package-linear rulers 0.1 micron for X and Y axes
OPC-Optical Profile Control-camera on grinding spindle, integrated video coordinate system for measuring profiles
QUINTO-profile tools dxQ/CAD/CAM special program for grinding profile tools
Round grinding fixture with continuously programmable servo motor
