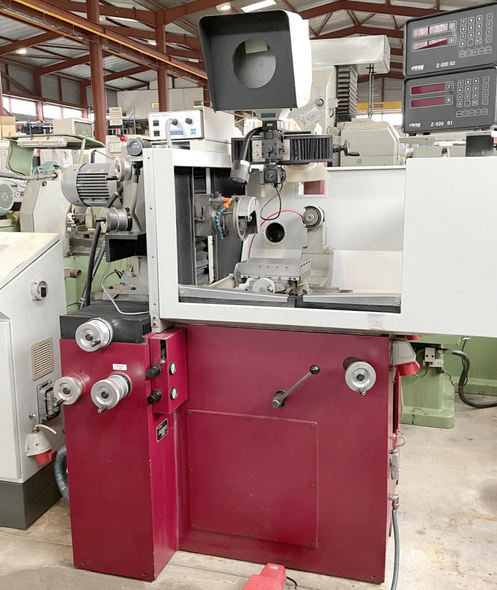

Ewag RS 15
Ref :
2797547-3-MT
Condition :
Used
Manufacturer :
Ewag
Model :
RS 15
Year(s) :
-
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Table Length: 155 mm
Table Width: 205 mm
X Axis: 490 mm
Y Axis: 130 mm
Radius Adjustment (Z Axis): 0–115 mm
Support Travel: 60 mm
Oscillation: 0–70 mm
Oscillation Frequency: 30 / 60 min⁻¹
Spindle Inclination (A Axis): -10° to +27°
B Axis Swivel Range: 260°
Contact Pressure: 0–400 N
Pneumatic Swivel Lock: 40 Nm
Grinding Spindle Speed: 1000–8000 rpm
Grinding Spindle Motor Power: 2.2 kW
Control: not specified
Voltage: 3×400 V, 50 Hz
Total Power Required: 5 kVA
Machine Weight: 1800 kg
Dimensions (Machine): 1630 × 1250 × 1900 mm
Dimensions (Control): 1000 × 400 × 960 mm
Accessories:
3-axis digital readout
2× dividing attachments
Redressing device
Adjustable projector
Cold light
Central lubrication
