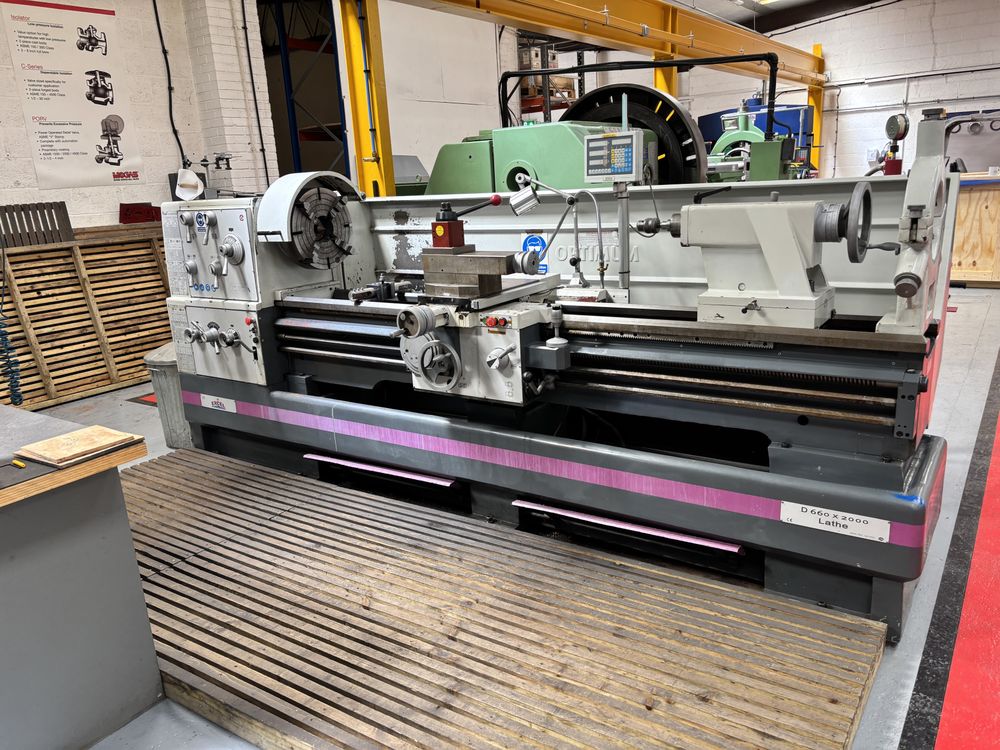

Excel Engine Lathe 2600 rpm (16 speeds) OPTIMUM D660 x 2000
Ref :
2738871-3-GO
Condition :
Used
Manufacturer :
Excel
Type :
Engine Lathe
Spindle Speed :
2600 rpm (16 speeds)
Model :
OPTIMUM D660 x 2000
Year(s) :
0
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Swing: 660 mm
Swing in the gap: 900 mm
Swing over the cross-slide: 440 mm
Center height: 330 mm
Compound slide travel: 230 mm
Spindle bore: 105 mm
Spindle nose: D1-8
Spindle speed: 25–2600 rpm (16 speeds)
Main motor: 9 kW
Tailstock quill diameter: 90 mm
Tailstock taper: MT #5
Machine dimensions: 3650 × 1500 × 1790 mm
Machine weight: 3345 kg
Equipment
3 jaw chuck
4 way toolpost
Coolant
DRO
Low volt light
Tailstock
