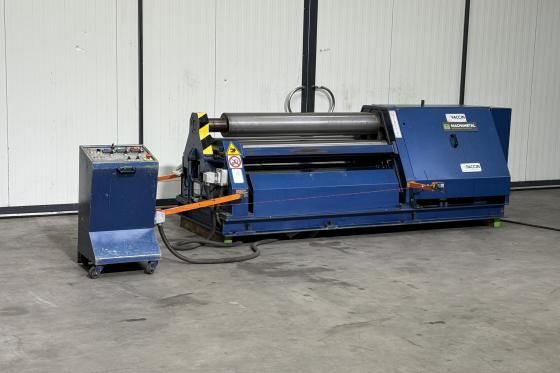

Faccin 4HEL 1622
Ref :
2733438-3-GO
Condition :
Used
Manufacturer :
Faccin
Model :
4HEL 1622
Year(s) :
2004
Quantity :
1
Location :
Seller or machines location:
EUROPE (Western and Northern)
EUROPE (Western and Northern)
Rolling width 1550 mm
Rolling thickness 3x top roll Ø 10 mm
Rolling thickness 5x top roll Ø 12 mm
Rolling thickness prebending 8 mm
Top roll diameter 215 mm
Bottom roll diameter 215 mm
Side roll diameter 165 mm
Number of rolls 4
Rolling speed 3–6
Lower roll adjustment 150 mm/min
Side rolls adjustment 150 mm/min
Number of driven rolls 2
Numerical control PGS Classic
Hardened rolls (induction hardened)
Central lubrication
CE with safety guard cable
Machine length 3500 mm
Machine width 1200 mm
Machine height 1200 mm
Machine weight 3500 kg
