Fagima JAZZ L5 AX 5

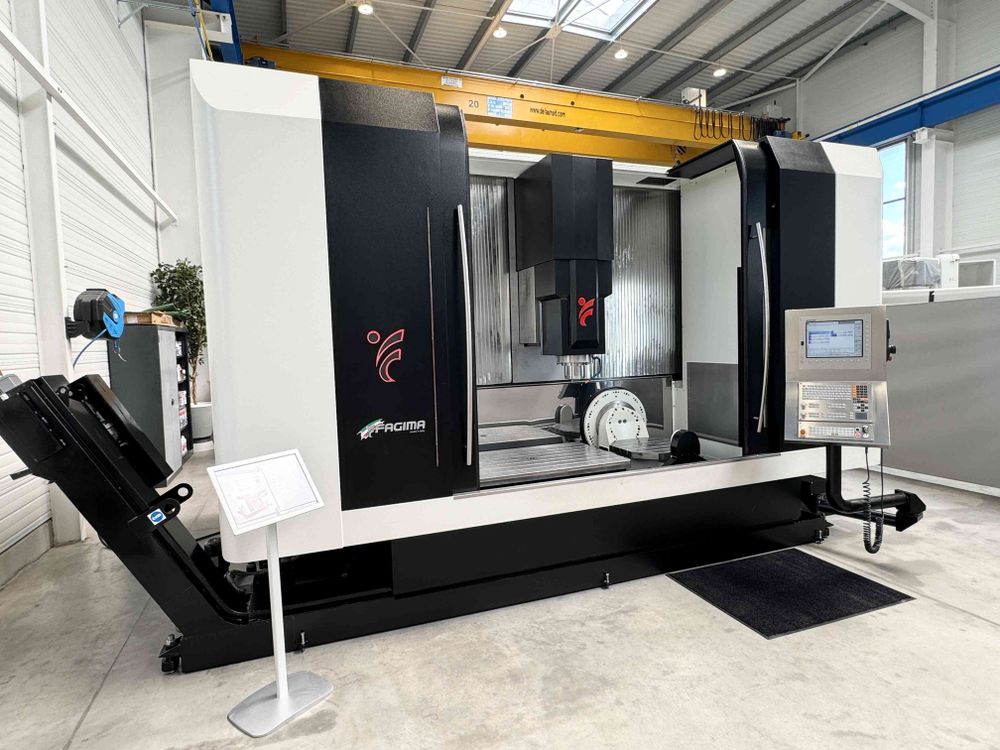

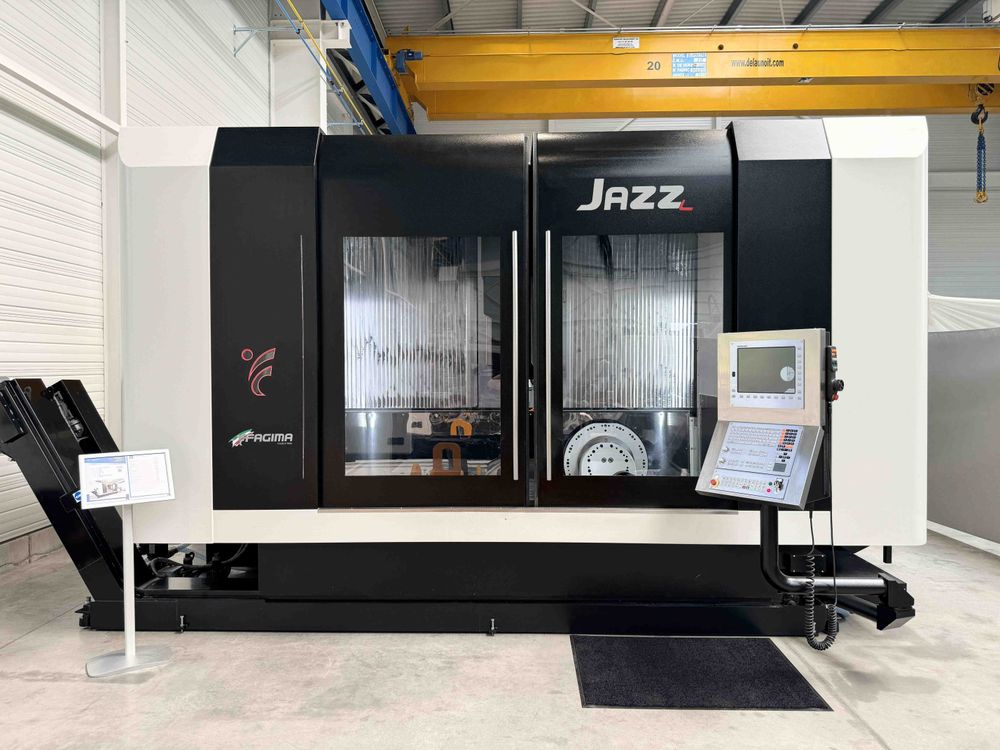

Vertical machining center FAGIMA Jazz L5 AX



TECHNICAL CHARACTERISTICS :

CNC control : HEIDENHAIN iTNC 640
Number of simultaneous axes : 5
Stroke X axis : 2000 [mm]
Stroke Y axis : 600 [mm]
Stroke Z axis : 550 [mm]
Feed rate on X, Y and Z axes : 20000 [mm/min]
Traversing feeds X, Y and Z axes : 40000 [mm/min]
Axes acceleration : 2.5 [mm/sec²]
Min. distance spindle nose / table : 30 [mm]
Table length : 1250 [mm]
Table width : 800 [mm]
Max. load on table : 500 [Kg]

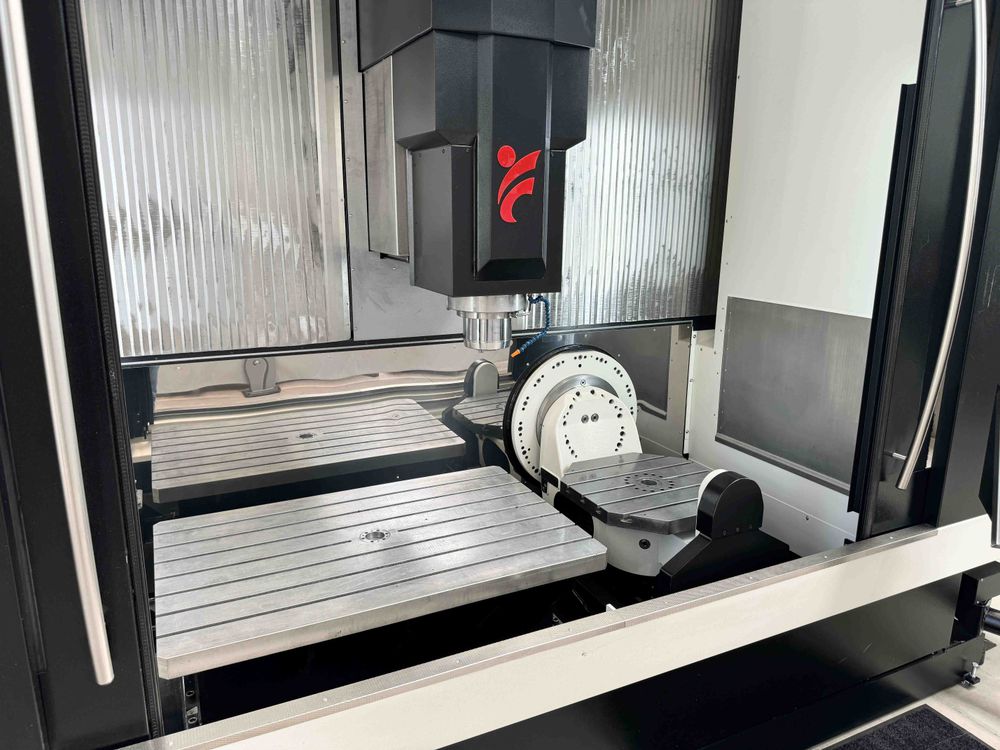

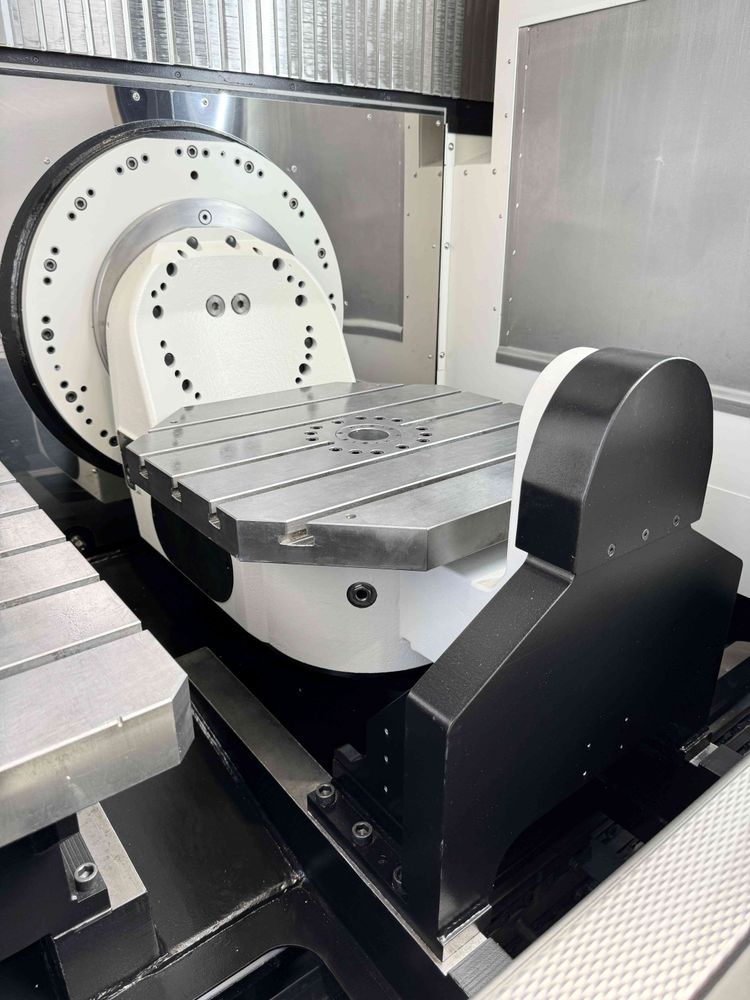

Rotary tilting table surface : 600 x 600 [mm]
Stroke C axis : table revolution : 360 [°]
Max. speed C axis : 25 [rpm]
B axis swivelling stroke : -110 / +110 [°]

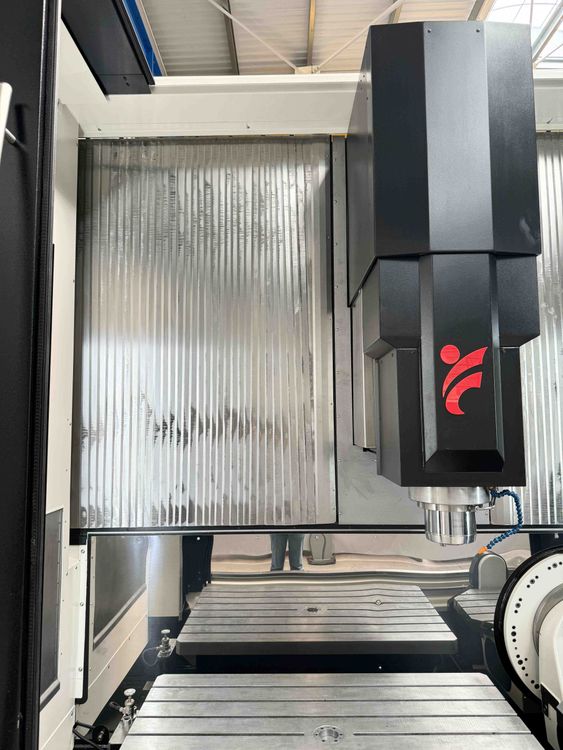

Spindle type : ISO 40
Max. spindle speed : 15000 [rpm]
Spindle power : 17 [kW]

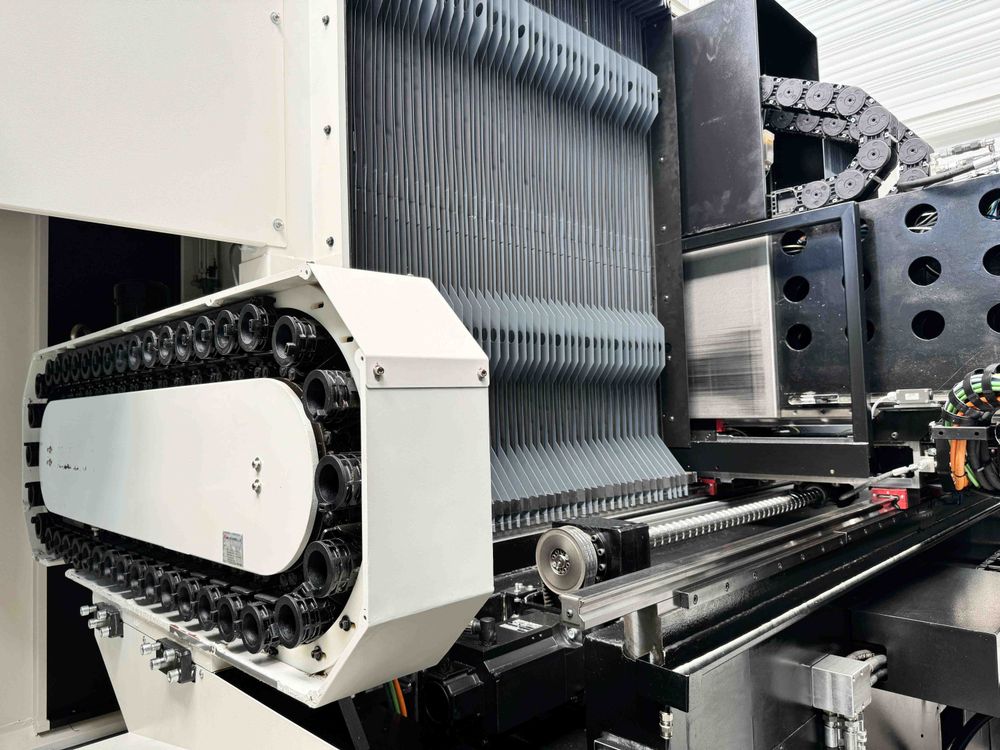

Tool changer magazin number of stations : 80
Max. tool length : 300 [mm]
Max. weight of single tool : 7 [Kg]
Total max. weight in tool changer magazin : 400 [Kg]
Total power required : 57 [kVA]
Supply voltage : 400 [V]
Number of hours under power : 17840 [h]
Weight : 15000 [Kg]


EQUIPMENT INCLUDED :

- HEIDENHAIN glass scales on all 3 axes
- Coolant through spindle (20 bars)
- Chip conveyor
- Blowing inside + outside spindle
- Collision monitoring
- Simultaneous 5-axis software

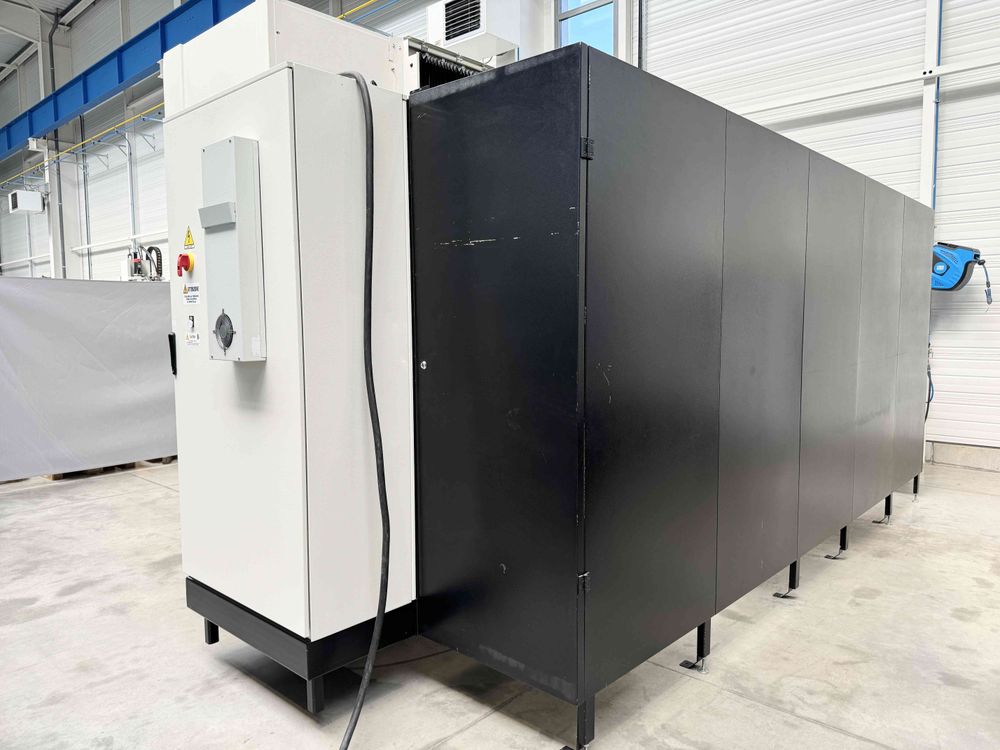

- Electrical cabinet chiller
- HEIDENHAIN part probe

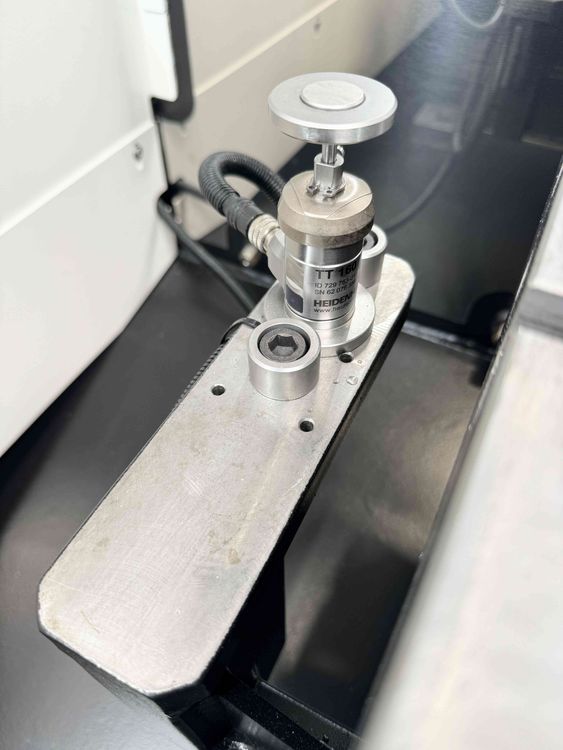

- HEIDENHAIN tool probe



Machine visible under power in our premises by appointment.

Price on request, loading on truck included.

Worldwide shipping is possible.
