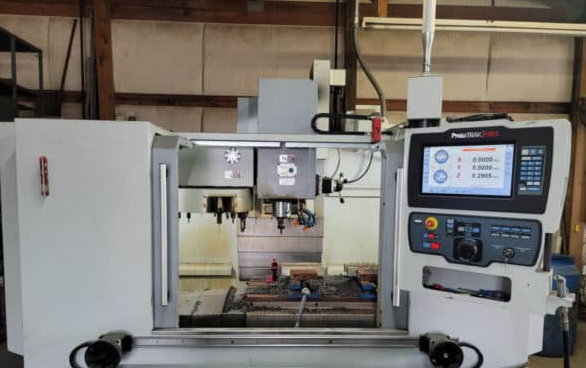

Trak VMC10 3 Axis

X-axis travel 40.75″
Y-axis travel 20″
Z-axis travel 20″
Control ProtoTRAK RMX
Conv-Para/DXF-RMX
Electronic Handwheel
Spindle taper 40 taper
Spindle speed range 50–8,000 RPM
Spindle motor 15 HP (peak)
ATC tool capacity 16
Table size 44.09″ x 19.69″
T-slots 5 x .709″ x 3.937″
Maximum workpiece weight 1,000 lbs
Table height from bed bottom 38″
Minimum spindle nose to table 3.5″
Maximum spindle nose to table 23.5″
Spindle center to spindle head casting face 18.25″
ATC
