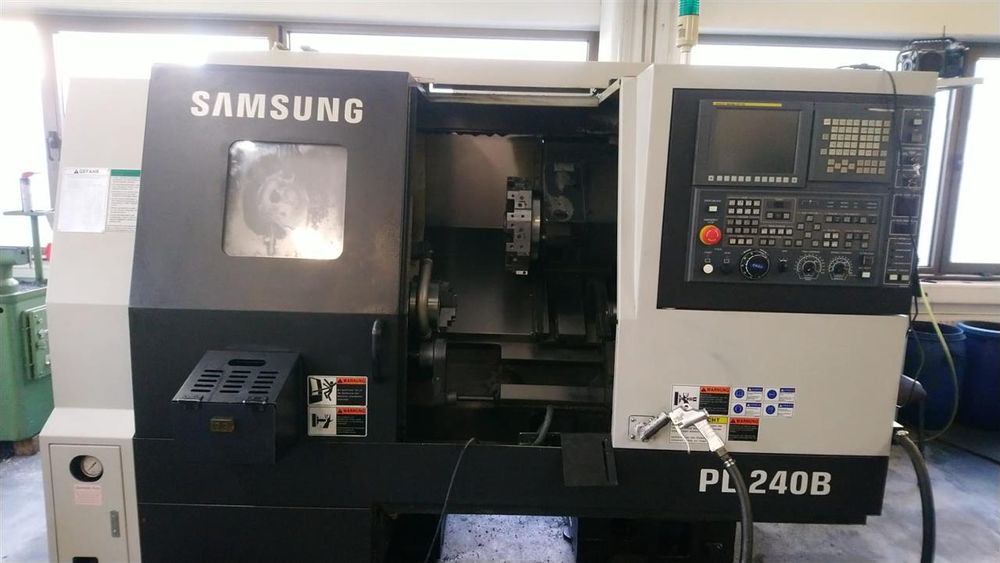

Fanuc 0i-TD Control 4000 rpm SMEC PL 240 B 3 Axis

Ref : 2788518-3-MT

Condition : Used

Manufacturer : -

Controller : Fanuc 0i-TD Control

Spindle Speed : 4000 rpm

Model : SMEC PL 240 B

Nb Of Axis : 3 Axis

Year(s) : 2014

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X-Axis Travel: 200 mm
Z-Axis Travel: 560 mm
Y-Axis
Sub Spindle
Rotary Tools
Maximum Turning Diameter: 350 mm
Turning Length: 540 mm
Swing Diameter: 510 mm
Bar Capacity: 66 mm
Spindle Bore: 76 mm
Spindle Speed: 4000 rpm
Spindle Motor Power: 18.5 kW
Rapid Traverse: 24 m/min (X/Z)
Turret Stations: 12
Tool System: BMT 55
Tailstock Quill Taper: MT4
Tailstock Travel: 490 mm
Tailstock Quill Stroke: 80 mm
Tailstock Quill Diameter: 75 mm
Chuck Size: 200 mm
Chip Conveyor
Parts Catcher
Tool Eye
Machine Dimensions: 3500 x 1400 x 1850 mm
Total Power Requirement: 32 kW
Weight: 4 t
