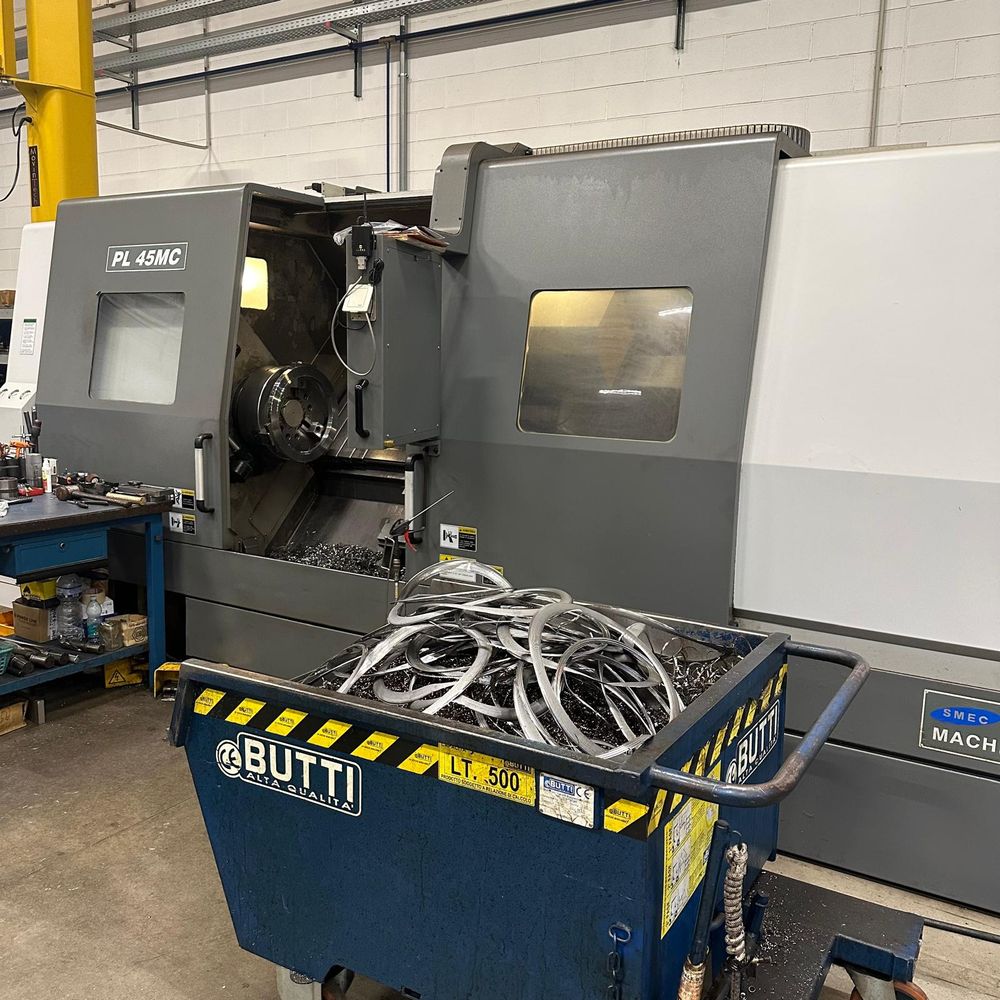

Fanuc 0iTD 2000 rpm SMEC PL45MC/2200 3 Axis

Ref : 2798704-3-MT

Condition : Used

Manufacturer : -

Controller : Fanuc 0iTD

Spindle Speed : 2000 rpm

Model : SMEC PL45MC/2200

Nb Of Axis : 3 Axis

Year(s) : 2010

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

X axis travel: 350 mm
Z axis travel: 2330 mm
C axis: Yes
Control: Fanuc 0iTD
Maximum swing over bed: 775 mm
Maximum turning diameter over carriage: 630 mm
Maximum turning diameter over bed: 690 mm
Turning length: 2255 mm
Bar capacity: 117 mm
Chuck diameter: 450 mm
Spindle nose: A2-11 ASA
Spindle bore diameter: 132 mm
Draw tube internal diameter: 117 mm
Spindle speed: 10–2000 rpm
Main spindle motor power: 30/37 kW
Maximum spindle motor torque: 1980 / 2450 Nm
Motorized turret: 12 positions
Tailstock taper: Morse taper 5
Tailstock travel with carriage coupling: 2255 mm
Quill diameter: 160 mm
Quill travel: 150 mm
Maximum quill thrust: 2851 kg
X/Z axis motor power: 7/7 kW
Carriage guide inclination: 45°
Machine dimensions: 6521 × 2154 × 2374 mm
