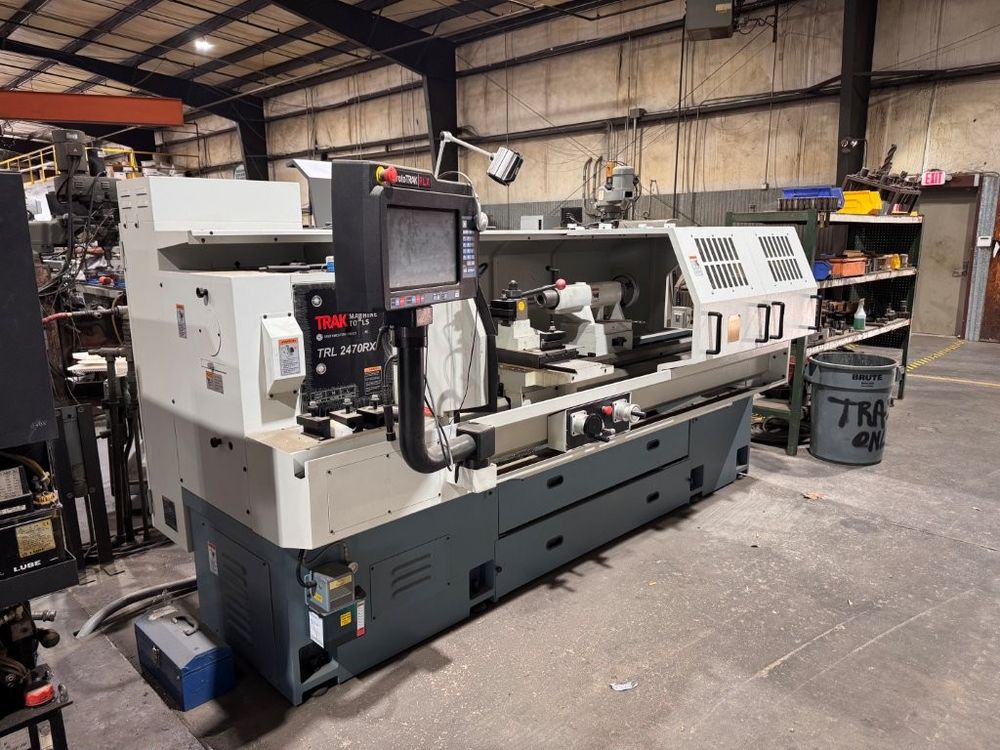

Southwestern Industries ProtoTRAK RLX CNC 1800 rpm TRL 2470RX 2 Axis

Control: ProtoTRAK RLX CNC
Manual or CNC operation
Electric handwheels
Joystick control
Brushless servo motors
Constant surface speed (CSS)
Swing over bed: 24 in
Swing over cross slide: 14.5 in
Distance between centers: 70 in
Spindle bore: 4.09 in
Spindle speed: 40–1800 rpm
Spindle motor: 15 HP
Spindle nose: D1-8
Tailstock quill diameter: 3.5 in
Tailstock taper: MT5
Tailstock quill travel: 8.5 in
Chuck size: 20 in
3-jaw chuck
Manual chuck: 12 in
4-position quick-change toolpost
Machine dimensions: 134 × 85 × 80 in
Machine weight: 7500 lb
