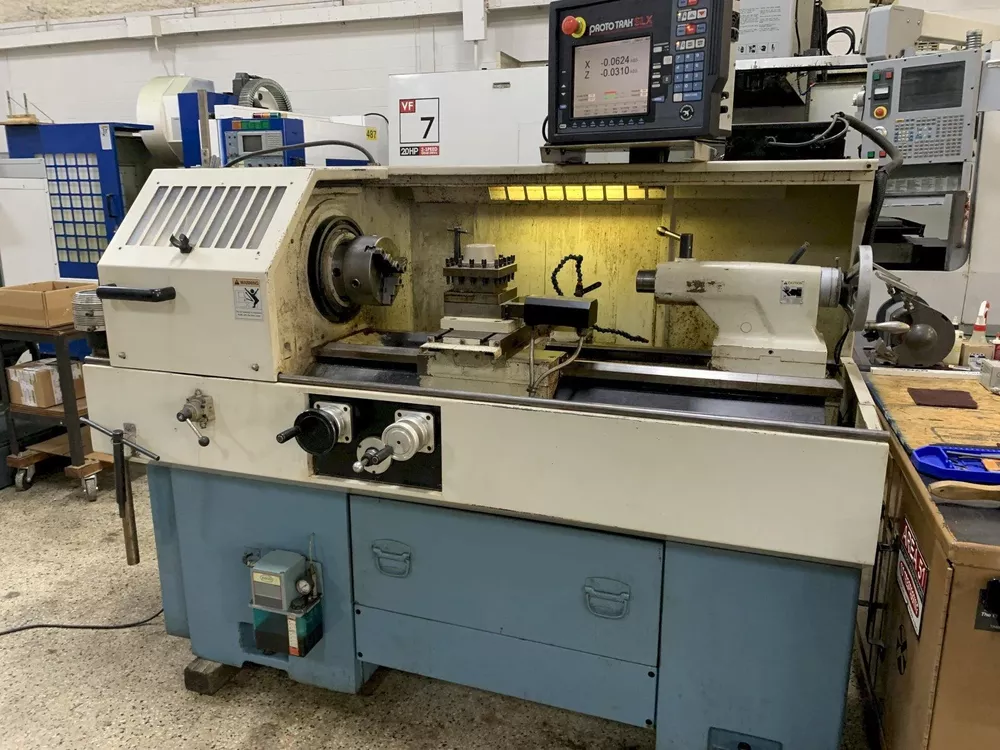

Southwestern Industries ProtoTRAK SLX CNC Control 2,500 RPM TRL 1630SX 2 Axis

Rapid Traverse (X): 100 IPM
Rapid Traverse (Z): 150 IPM
Distance Between Centers: 30"
ProtoTRAK SLX CNC Control
Electronic Handwheels
TRAKing
DXF File Converter
Converter Utility
USB ports
10.4" color screen
Coolant System
Work Light
Swing Over Bed: 16"
Swing Over Cross Slide: 8.6"
Spindle Bore / Through Hole: 2.12"
Spindle Speeds, Programmable: 150–2,500 RPM
Spindle Motor: 7.5 HP
Spindle Nose: D1-6 Camlock
4-Position Automatic Electric Tool Turret
8" 3-Jaw Chuck
Air Actuated 5C Collet Attachment
Collets
Tailstock: MT#4 quill
Approximate Weight: 3,000 Lbs.
Floor Space (approx.): 82" L × 46" W × 72" H
Power Requirements: 220V / 3-Phase / 25A
Chip Enclosure/Guard
Live Center
Control mode: conventional and CNC (Hybrid)
