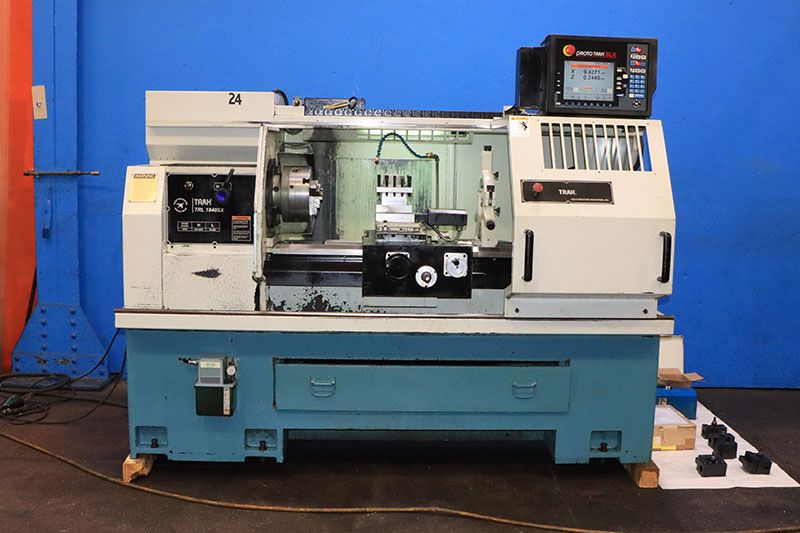

Southwestern Industries Southwestern Industries Prototrak SLX CNC 2500 RPM 1840SX 2 Axis

Swing over bed: 18-1/2"
Swing over cross slide: 9"
Swing over saddle wings: 17"
Distance between centers: 40.2"

X-axis travel: 13"
Z-axis travel: 40"

Spindle speed range: 50 - 2500 RPM
Spindle bore: 2.36"
Spindle taper: D1-6

Tailstock quill travel: 6.3"
Tailstock quill diameter: 2.95"
Tailstock taper: #5 MT

Motor power: 10 HP
Voltage: 220 V, 3-phase

Machine weight: 4,500 lb
Overall dimensions: 94" x 53" x 70"

Control: Southwestern Industries Prototrak SLX CNC
3-jaw chuck (10")
4-station programmable indexable toolpost
Steady rest
Coolant system
Automatic lubrication system
Electronic handwheels (X & Z)
Jog joystick
Constant surface speed
Programmable spindle speeds
