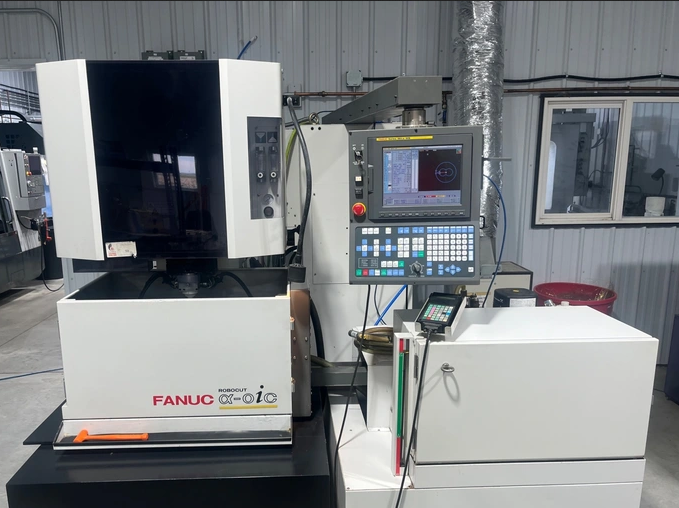

Fanuc Alpha 0iC

X-Axis Travel 12.6 in
Y-Axis Travel 8.7 in
Z-Axis Travel 7 in
U/V-Axis Travel -2.364 in
Taper Capacity 30 deg
Number of Axes 5
Table Load Capacity 1,100 lb
Wire Diameter Min 0.004 in
Wire Diameter Max 0.012 in
Dielectric Tank Capacity 127 gal
Submerged Yes
Chiller Included Yes
Power Requirement 220 VA
Control Fanuc series 180is-WB 64 bit CNC
Machine Dimensions 78" x 78" x 77"
Machine Weight 4,000 lbs

Features
Micro finish power supply
Heidenhain linear glass scales – X and Y Axis only
Fanuc serial/digital AC servo motors
Independent column mounted U and V axis slides
Automatic wire feed system (18 sec. spark to spark)
Anti-Crash protection (X, Y, U, V, Z)
12.1” Color ICD
Programmable Z axis
AI function – automatic setting of cutting conditions
Handy controller (hand held pendant)
Quick conversational programming
Automatic water level control in work tank
Operator guidance screens for operation, alarms, maintenance and parts
RS232C input/output port for file transferring
Ethernet port
PCMCIA slot
Coordinate system rotation
Work coordinate system (G54-G59)
Scaling
Retrace
Programmable flushing
