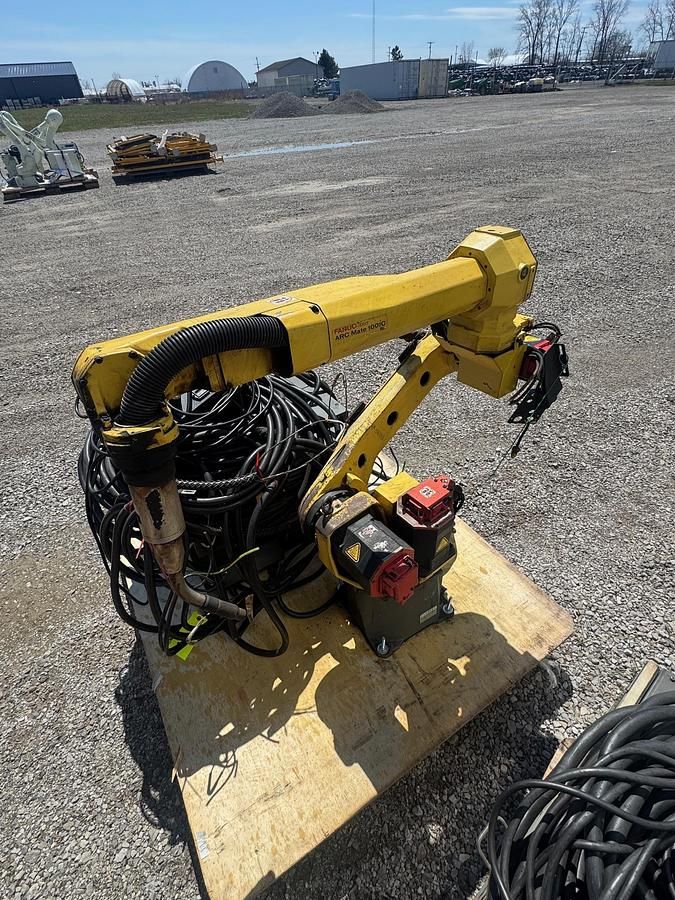

Fanuc ARCMATE 100iC/6L 6 Axis 6kg

FANUC ARCMATE 100iC/6L
Year 2012

Axes 6
Payload 6kg
H-Reach 1632mm
Repeatability ±0.1mm
Robot Mass 135kg
Structure Articulated
Mounting Floor, Inverted, Angle

Robot Specifications
Axes: 6
Payload: 6kg
H-Reach: 1632mm
Repeatability: ±0.1mm
Robot Mass: 135kg
Structure: Articulated
Mounting: Floor, Inverted, Angle

Robot Motion Speed
J1 210 °/s (3.67 rad/s)
J2 190 °/s (3.32 rad/s)
J3 210 °/s (3.67 rad/s)
J4 400 °/s (6.98 rad/s)
J5 400 °/s (6.98 rad/s)
J6 600 °/s (10.47 rad/s)

Robot Motion Range
J1 ±360°
J2 ±250°
J3 ±445°
J4 ±380°
J5 ±380°
J6 ±720°


Applications
Arc Welding Robots
MIG Welding Robots
Plasma Cutting Robots
Plasma Welding Robots
TIG Welding Robots
