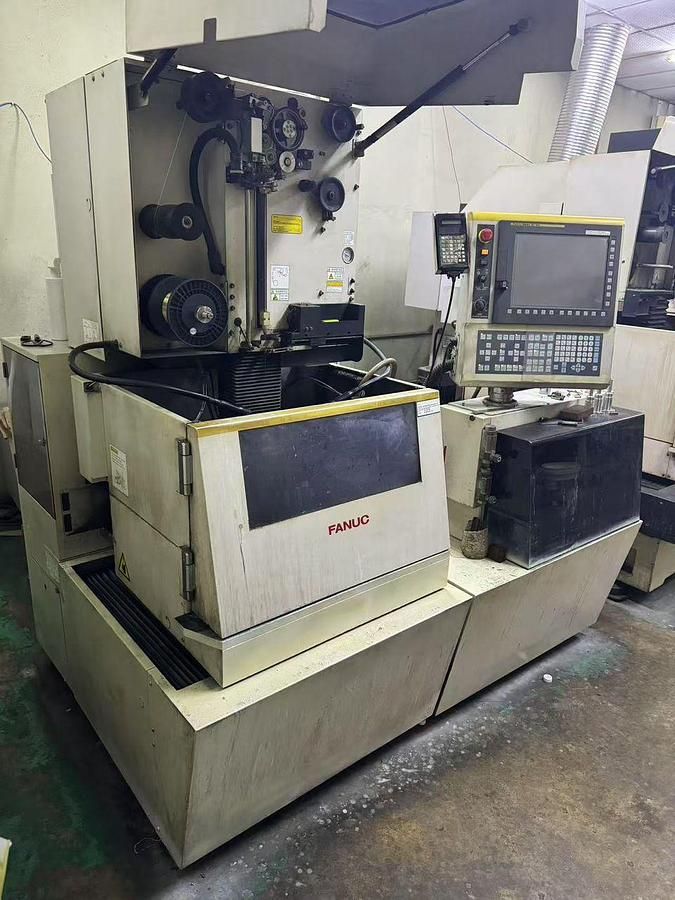

Fanuc Robocut α-OiD

X-Axis Travel 370.8 mm
Y-Axis Travel 269.2 mm
Z-Axis Travel 254.0 mm
U Axis Travel 60.0 mm
V Axis Travel 60.0 mm
Degree Taper Cutting 30° at 83.8 mm
Inside Tank Dimensions 775 mm x 599 mm
Power Requirement 200–230V / 3 Phase / 60 Hz
Glass Scale Feedback 0.001 µm rotary
Wire Diameter 0.20 mm – 0.30 mm
Max Cutting Speed 216 cm²/hour (with 0.30 mm coated wire, 61 mm thick D2 steel)
Positioning Accuracy ±2.5 µm
Dielectric Capacity 550 liters
Max Submerged Depth 250 mm
Max Workpiece Size 775 mm x 599 mm x 254 mm
Max Workpiece Weight 499 kg
Machine Footprint 1930 mm x 2210 mm x 1956 mm
Machine Weight 1814 kg
