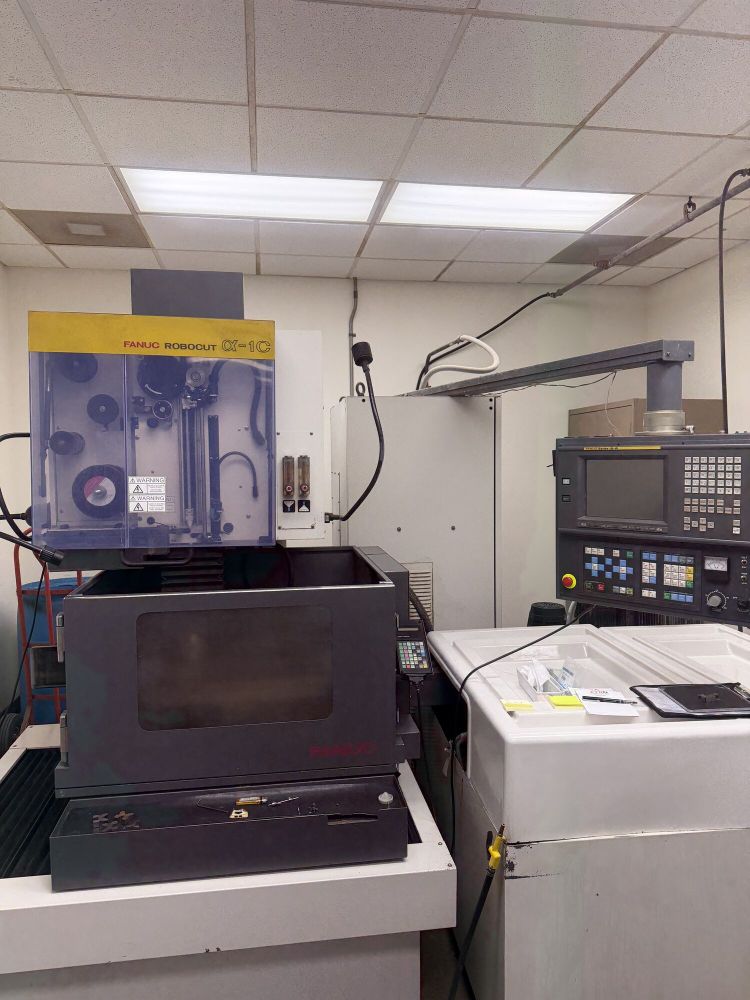

Fanuc ROBOCUT ALPHA 1C

X-Axis Travel: 20.47"
Y-Axis Travel: 14.56"
Z-Axis Travel: 11.81"
U-Axis Travel: ±2.364"
V-Axis Travel: ±2.364"
Rapid Traverse: 35.4 IPM
Control: Fanuc 16WC CNC
5 Controlled Axes (X, Y, U, V, Z)
Submersible Machining
Automatic Wire Threading
Linear & Circular Interpolation
9.5" Color LCD Display
Relative, Absolute & Machine Position Commands
Least Input Increment: 0.000004"
Least Command Increment: 0.000004"
Cutting Feed Rate: 0.0004–1 IPM
Maximum Workpiece Dimensions: 31.10" × 28.74" × 10.83"
Maximum Workpiece Weight: 1,000 lbs
Taper Angle: ±15° @ 7.98"
Taper Angle: ±30° @ 3.26"
Taper Angle: ±45° @ 1.93"
Wire Diameter: 0.004"–0.012"
Wire Feed Rate: 0–590 IPM
Wire Tension: 200–2500 g
Maximum Wire Spool Weight: 13.5 lbs
Upper Diamond Wire Guide
Lower Diamond Wire Guide
Wire Reclamation Bin
Filtration System
Chiller Unit
Full Set of Manuals
Machine Dimensions: 120" × 122" × 87.5"
Machine Weight: 9,500 lbs
