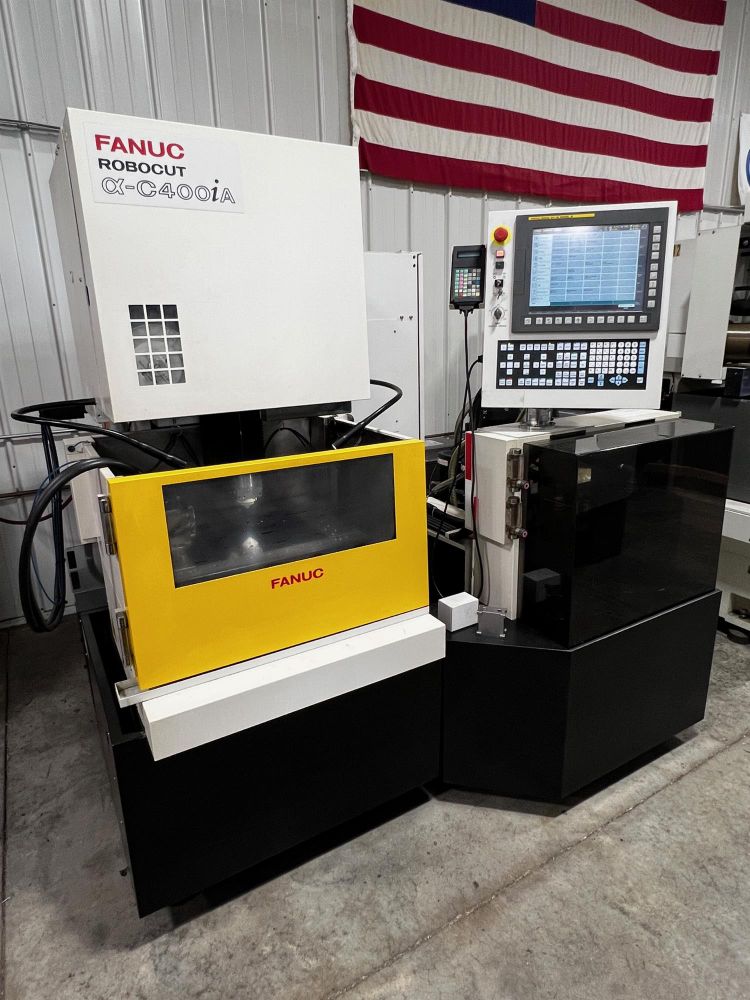

Fanuc ROBOCUT C400iA

FANUC ROBOCUT C400iA
2012

Internal worktank size 30.5" x 23.6" x 9.8"
Maximum workpiece weight 1,100 lbs
Machine range 14.6" x 10.6" x 10.2"
U/V travel ±2.362"
Taper angle ±12° at 10"
Wire diameter range .004" - .012"
Equipped with .010" wire guides
Maximum submerged cutting depth 9.84"
Dielectric fluid capacity 145 gallons
Maximum wire spool size 35 lbs
CNC control model Fanuc 31i-WB
Machine dimensions 92" x 105" x 77"
Machine weight 4,000 lbs
Input power 200–220V, 3 Phase, 13 KVA
15" color LCD touchscreen
Heidenhain X-Y glass scales
Automatic wire threader
Submerged cutting capability
Fluid chiller
Two LED work lights
Ethernet port
Two USB ports
Programmable flushing
Advanced pendant
Wire alignment gauge
6-axis Fanuc CCR rotary table included
Condition very good
