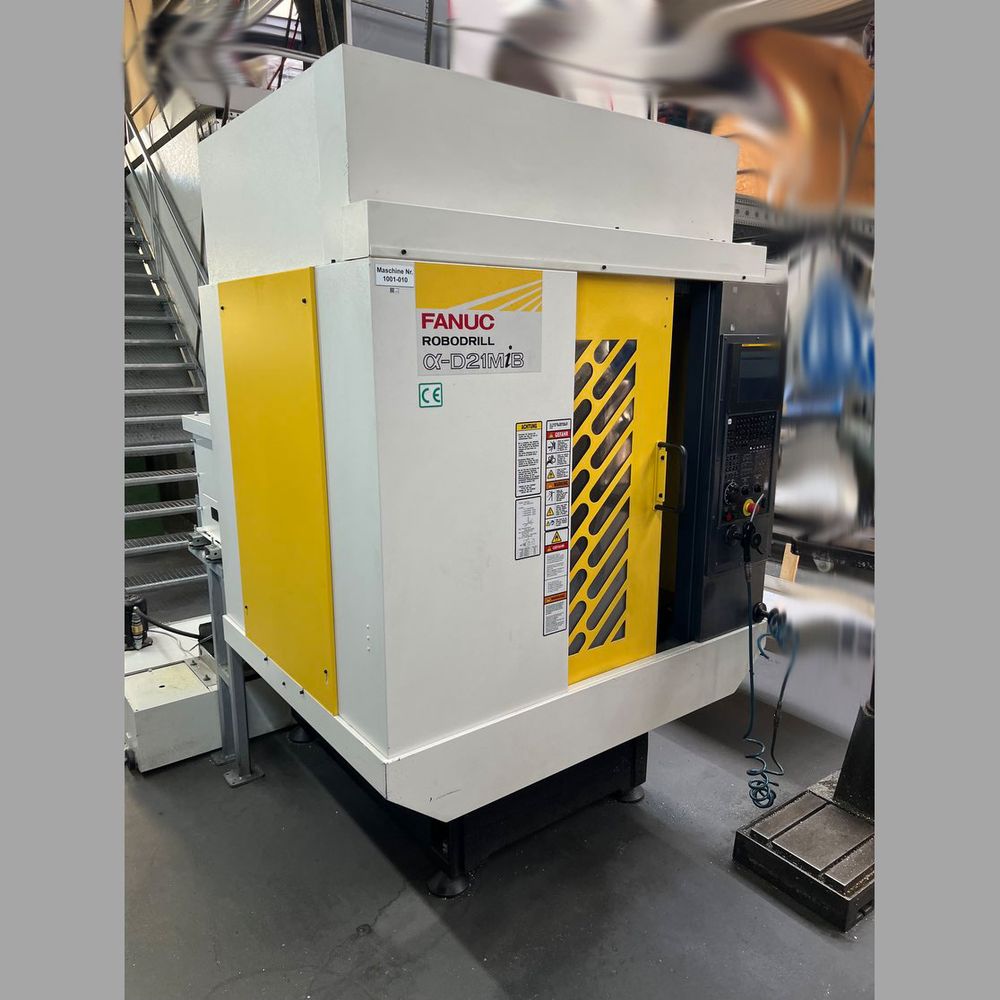

Fanuc ROBODRILL ALPHA-D21 MiB 3 Axis

X-axis travel: 500 mm
Y-axis travel: 400 mm
Z-axis travel: 330 mm
Rapid traverse X/Y/Z: 54/54/54 m/min
Maximum cutting feed X/Y/Z: 30/30/30 m/min
CNC control: Fanuc 31i-B
Fully enclosed work area
Work area lighting
Coolant unit
Spindle taper: BT30
Spindle speed: 24000 rpm
Spindle power (10–40% duty): 26 kW
Spindle power (100% duty): 5.5 kW
Spindle torque (10–40% duty): 35 Nm
Spindle torque (100% duty): 7.5 Nm
Tool magazine type: Disc
Tool magazine capacity: 21 stations
Maximum tool diameter: 80 mm
Maximum tool length: 250 mm
Tool change time: 1.6 s
Table size: 850 x 410 mm
Maximum workpiece weight: 3 kg
Total power requirement: 10 kVA
Machine weight: approx. 2200 kg
Machine dimensions (L x W x H): approx. 2650 x 2850 x 2775 mm
Power-on hours: approx. 5937 h
Spindle hours: approx. 836 h
