Willemin Macodel W408MT 5

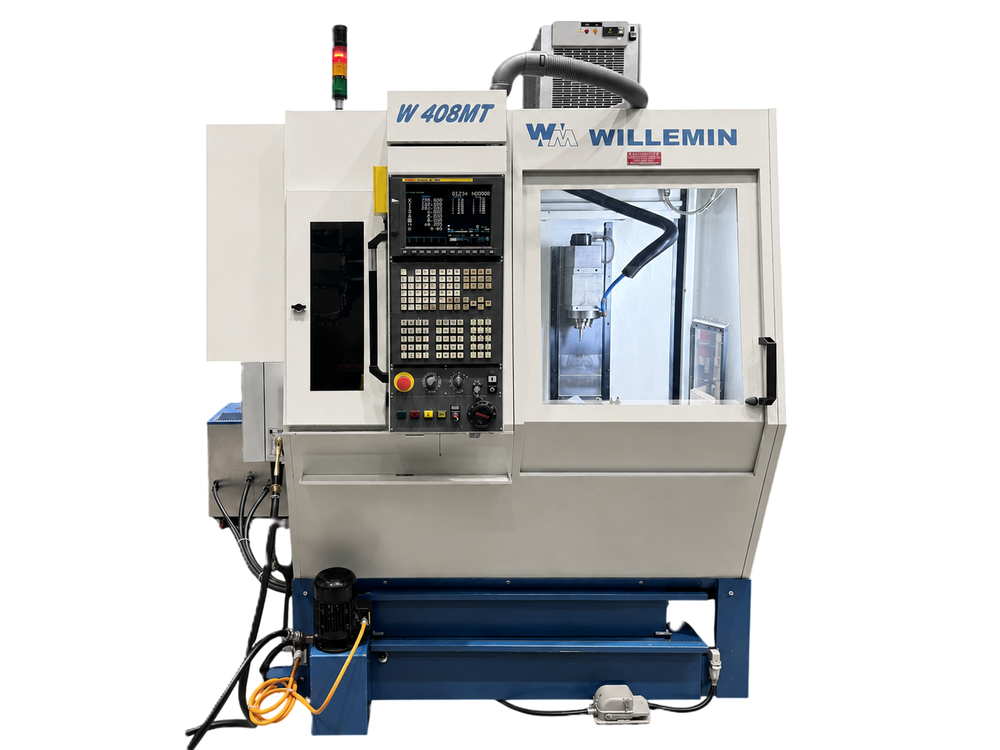

CNC Machining center WILLEMIN W 408MT



TECHNICAL CHARACTERISTICS:

Year of manufacturing: 2006
CNC control: FANUC 16i-MB
Number of axes: 5
Stroke X axis: 250 [mm]
Stroke Y axis: 200 [mm]
Stroke Z axis: 300 [mm]
Feed rate on X, Y and Z axes: 30000 [mm/min]
Max. bar diameter in turning spindle: 32 [mm]
Main spindle max. speed: 6000 [rpm]
Main spindle max. power: 3.7 [kW]
Angular C axis stroke: 360 [°]
B axis swivelling stroke: 115 [°]
Spindle type: HSK-E40
Min. spindle speed: 500 [rpm]
Max. spindle speed: 30000 [rpm]
Spindle power: 10 [kW]
Tool changer magazin number of stations: 48
Max. tool lenght: 95 [mm]
Max. tool diameter: 63 [mm]
Lubrication tank capacity: 80 [l]
Collant pump flow rate: 40 [l/min]
Rated current: 25 [A]
Supply voltage: 400 [V]
Machine weight: 1700 [Kg]


More information upon request.
