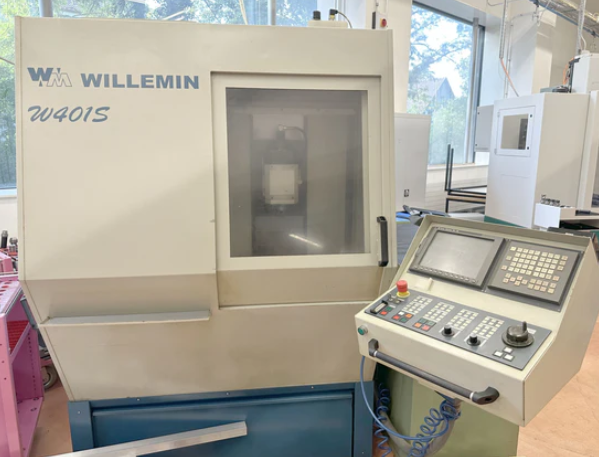

Willemin Macodel W 401S 3 Axis

Number of Axes: 3
Table Length: 400 mm
Table Width: 250 mm
Number of T-Channels: 3
Distance of T-Slots: 80 mm
T-Channel Width: 14 mm
Longitudinal Travel (X-Axis): 250 mm
Transversal Travel (Y-Axis): 200 mm
Vertical Travel (Z-Axis): 300 mm
Tool Magazine Number of Tool Places: 48
Spindle Nose: HSK E40
Spindle Speeds Stepless: 0–14,000 RPM
Work Feed Rate: 20 m/min
Rapid Traverse: 30 m/min
Max Feed Force: 3,700 N
Resolution: 1 µm
Air Connect: 6 bar
Voltage: 3×400 V, 50 Hz
Spindle Power: 10.4 kW
Total Power Required: 18 kVA
Machine Weight: 1,700 kg
Overall Dimensions (L × W × H): 2,100 × 1,630 × 2,265 mm
Space Requirement: 2 m²

Vice Width: 100 mm
Set of Toolholders
Coolant System
Lamp
