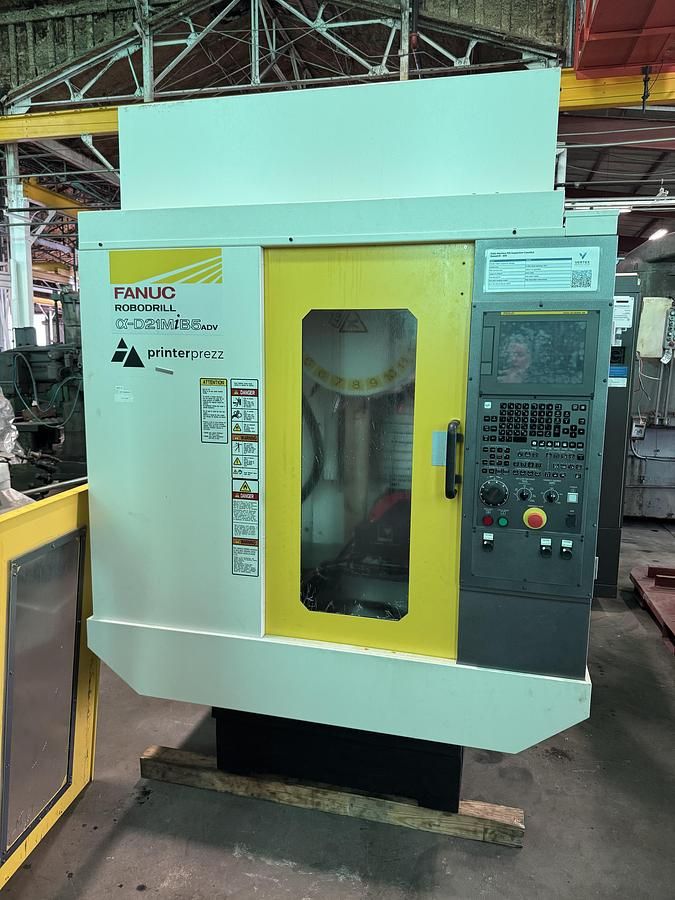

Fanuc ROBODRILL ALPHA D21MiB5-24-ADV 3 Axis

X axis travel 500 mm
Y axis travel 400 mm
Z axis travel 400 mm
Maximum tool length (0–24,000 RPM) 250 mm
Maximum tool diameter 80 mm
Table size 650 mm x 400 mm
Maximum table load 400 kg
Maximum tool mass 4 kg
Spindle nose to table top 180–580 mm
Control FANUC 31i-B5
Spindle torque 80 Nm / 14.2 kW (10,000 RPM, 1 min)
Spindle torque continuous 13.6 Nm / 4 kW (10,000 RPM)
Spindle torque 35 Nm / 26 kW (24,000 RPM, 1 min)
Spindle torque continuous 7.5 Nm / 5.5 kW (24,000 RPM)
Rapid traverse rate (X/Y/Z) 54 m/min
Programmable cutting feed rate 30,000 mm/min
Acceleration (X/Y/Z) 1.6 / 1.2 / 1.6 G
Number of tools 21
Tool change time (cut-to-cut) 1.3 sec
Bidirectional positioning accuracy
