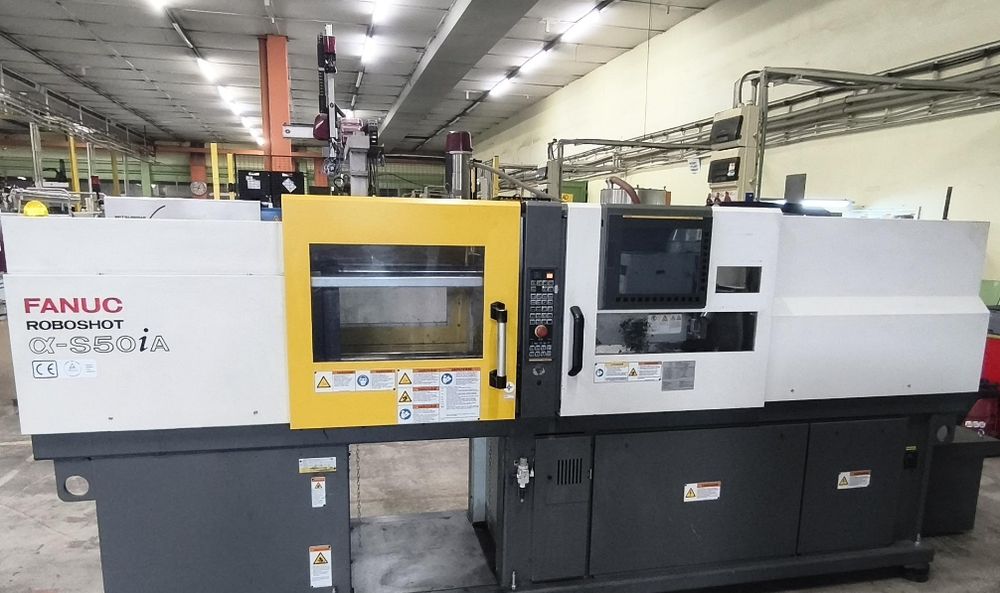

Fanuc Roboshot S50iA 50 T

Clamping force - 500/650 kN
Injection cylinder diameter - 27 mm
Theor. Cylinder volume - 50 cm3
Centering circle diameter - 125 mm
Min. mold height - 210 mm
Max. mold height - 460 mm
Max. opening of the cap - 600 mm
Distance between columns (vertical) - 320 mm
Distance between columns (horizontal) - 360 mm
External dimensions of the clamping plate (w x h) - 500 x 470 mm
Number of hydraulic cores - 0
Number of pneumatic circuits - 2
Max. ejector stroke - 70 mm
Power consumption - 30 kW

Equipment / Options:
Power transformer AC400V → AC200V
Air ejector – 3 circuits
Reject part detection
Euromap E67
USB interface
Parallel mould movement / dosing
Parallel mould movement / ejector
Pre-injection function
Precision dosing function
Screw check valve backflow measurement
Shut-off nozzle – software
Hot runner valve gates – 8 circuits (software)
Communication with temperature controllers (software)
Intelligent mould protection
Intelligent ejector protection
Tool kit
Fuse kit
21 freely programmable inputs/outputs
2× analogue inputs 0–10 V DC
Alarm beacon with audible signal
Czech operating manual
1-day operator training at customer site
Commissioning
Automatic clamping force correction during operation
