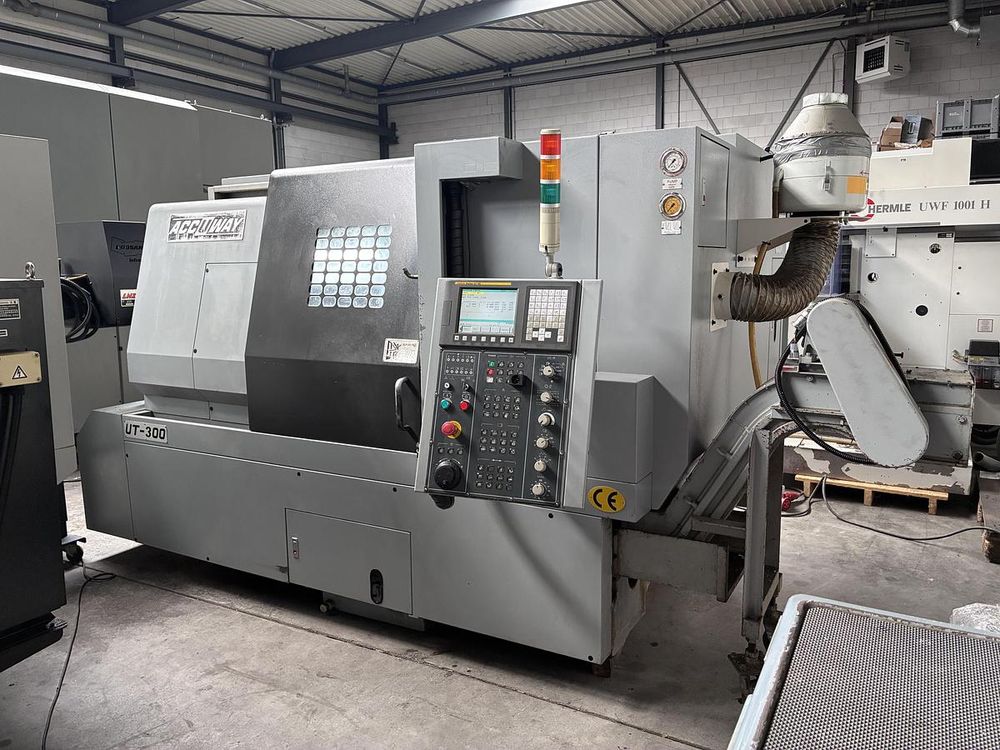

FANUC Series 0i-TC 3500 rpm ACCUWAY UT-300 2 Axis

Ref : 2809277-3-GO

Condition : Used

Manufacturer : -

Controller : FANUC Series 0i-TC

Spindle Speed : 3500 rpm

Model : ACCUWAY UT-300

Nb Of Axis : 2 Axis

Year(s) : 2006

Quantity : 1

Location : Seller or machines location:
EUROPE (Western and Northern)

Axis travel X: 750 mm
Axis travel Z: 300 mm
Rapid traverse X: 20 m/min
Rapid traverse Z: 24 m/min
Control: FANUC Series 0i-TC
Maximum turning diameter: 500 mm
Swing over bed: 612 mm
Swing over cross slide: 388 mm
Bar capacity: 86 mm
Spindle speed: 0–3500 rpm
Spindle motor: 18.5 kW
Spindle nose: A2-8
Chuck diameter: Ø250 mm
Turret positions: 12
Tool size: 25 × 25 mm
Tailstock taper: MT5
Machine dimensions: 5800 × 1800 × 2000 mm
Machine weight: approx. 5500 kg
Foot pedal for chuck clamp/unclamp
Chip conveyor
Chip tray
Coolant wash gun
Hard jaws
Soft jaws
Mist extraction unit
Turning tool holders
Turning tools
Live center
