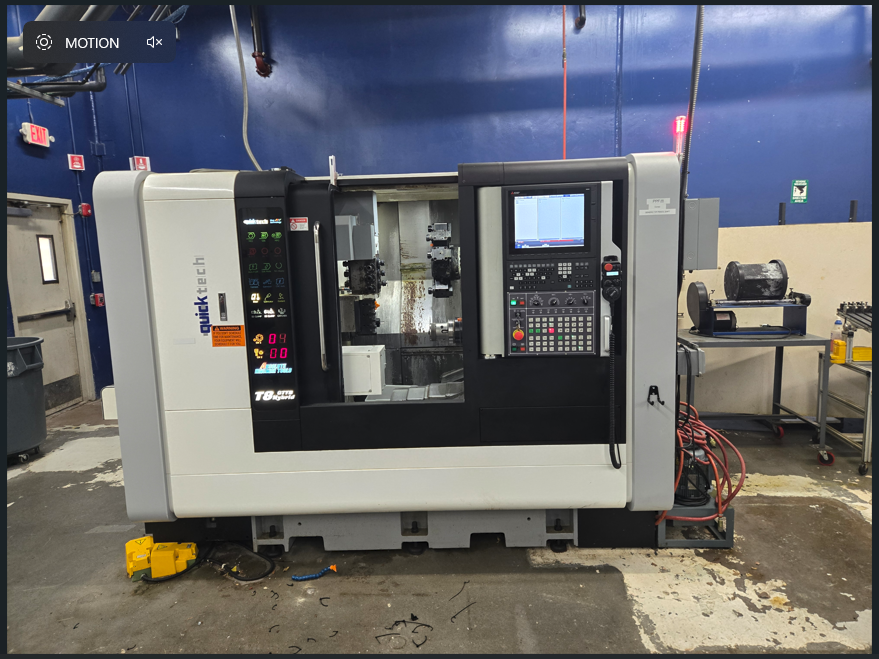

Mitsubishi M830S CNC 4000 rpm QUICKTECH T8 4 Axis

Bar capacity: 2.56 in
Maximum turning diameter: 11.8 in
Maximum turning length: 13.8 in
C axis
B axis: 360° rotary
Dual Y axis
Control: Mitsubishi M830S CNC
15 in color LCD touchscreen
Rigid tapping
Integrated bar feeder communication interface
Hole through draw tube: 2.6 in
Spindle speed: 4000 rpm
Spindle motor: 15 HP
Spindle nose: A2-6
Sub spindle
Live tooling
Live tool spindle motor: 5 HP
C-axis resolution: 0.001°
Chuck size: 8 in
Chuck type: 3-jaw hydraulic
Turret: 12-station BMT-55 servo
Tool capacity: 12 stations
Square tool size: 1 in
Boring bar capacity: 1.25 in
Turret indexing time: 0.3 sec/station
Coolant tank capacity: 65 gal
Hydraulic pump motor: 1 HP
Machine dimensions: 135 × 80 × 77 in
Machine weight: approx. 13,420 lb
Electrical: 208/220 V, 3-phase
Hinge-type chip conveyor
