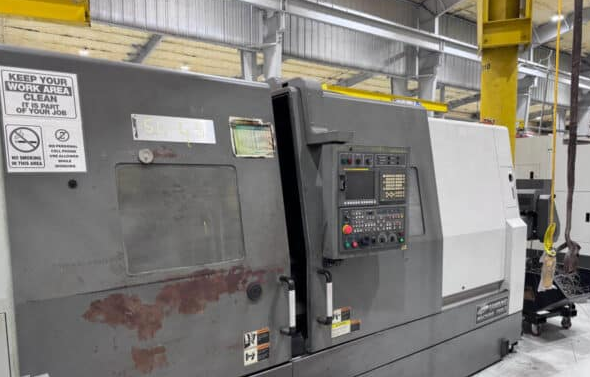

Fanuc Series 0i-TD 1200 rpm SMEC SL-45/2200BB 2 Axis

Swing over bed: 30.51 in (775 mm)
Swing over cross slide: 24.80 in (630 mm)
Max turning diameter: 27.17 in (690 mm)
Max turning length: 87.80 in (2230 mm)
X axis travel: 13.78 in (350 mm)
Z axis travel: 91.73 in (2330 mm)
Control system: Fanuc Series 0i-TD
Spindle nose: A2-15 (ASA)
Main spindle motor: 40/50 hp
Spindle speed: 1200 rpm
Chuck size: 24 in
Bore diameter: 7.125 in (181 mm)
Draw tube ID: 6.50 in (165 mm)
Spindle torque (30 min rating): 2330 ft-lbs (3158 Nm)
Spindle drive method: 2-speed gear
Turret stations: 12
Tool presetter included
Manual steady rest model RIP-216
Tailstock included
Chip conveyor included
Box way construction with anti-friction mating way surfaces
Large chuck included
