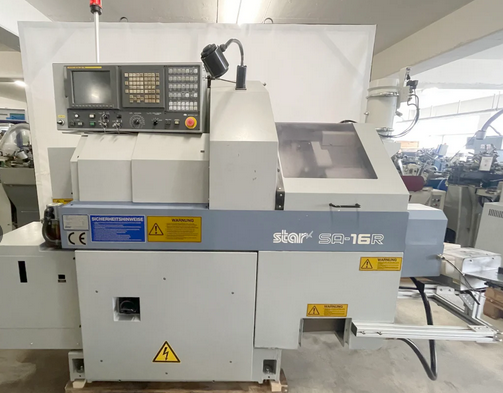

FANUC Series 18i-T 12,000 RPM STAR SA-16 RC 2 Axis

Rapid traverse: 20 m/min
Control: FANUC Series 18i-T
Bar passage diameter: 2–20 mm
Maximum turning diameter: 16 mm
Maximum drilling diameter: 7 mm
Maximum threading diameter: M6
Main spindle speed: 500–12,000 RPM
Main spindle motor power: 2.2 / 3.7 kW
Sub spindle speed: 500–9,000 RPM
Sub spindle motor power: 1.1 / 0.5 kW
Driven tool speed: 7,500 RPM
Driven tool power: 0.4 kW
Feedrate: 10,000 mm/min
Turning tools: 6
Drilling tools: 4
Transverse tools: 3
Counter-operation tools: 4
Tool shank size: 10 mm
Collet type: ER11
Air requirement: 5 bar
Total power required: 6 kVA
Machine length: 2,090 mm
Machine width: 770 mm
Machine height: 1,660 mm
Machine weight: 1,700 kg

Bar feeder
Parts catcher
Workpiece conveyor
Work light
High-pressure coolant unit
Coolant system 80 L
Set of collets
Set of toolholders
Fire extinguishing system
