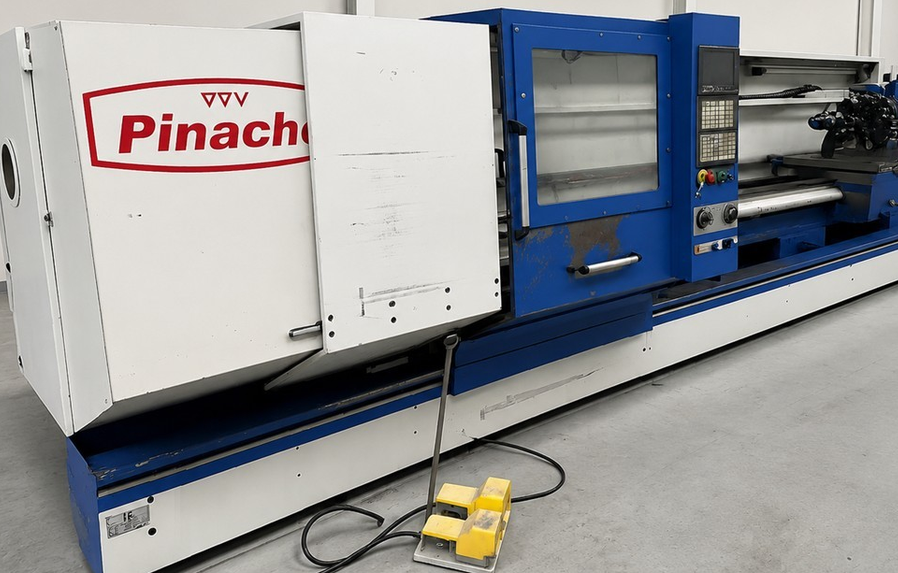

Pinacho GE Fanuc Series 21i-T 2000 RPM RHINO SK-425 2 Axis

Distance between centers: 5,000 mm
Rapid feed: 10,000 mm/min
Working feed: 7,000 mm/min
Control: GE Fanuc Series 21i-T
Swing over bed: 850 mm
Swing over cross slide: 560 mm
Center height: 425 mm
Bed width: 425 mm
Spindle speed: 0–2,000 RPM
Spindle motor power: 11 kW
Main spindle bore: 85 mm
Main spindle nose: DIN 55027 No. 8
Spindle taper: 5
Turret: Automatic
Turret positions: 8
Hydraulic 3-jaw self-centering chuck: Ø300 mm
Tailstock quill diameter: 96 mm
Tailstock quill stroke: 215 mm
Tailstock taper: Morse 6
Hydraulic tailstock quill stroke
Steady rest: Ø450 mm, 4-point
Steady rest: Ø250 mm, 3-point
Machine weight: Approx. 7 t
Machine dimensions: Approx. 7,300 × 1,700 × 1,900 mm
2 guide supports
2 automatic ranges
Chuck guard
Complete rear guard
Dual handwheel for carriage control
Foot pedals for hydraulic chuck operation
