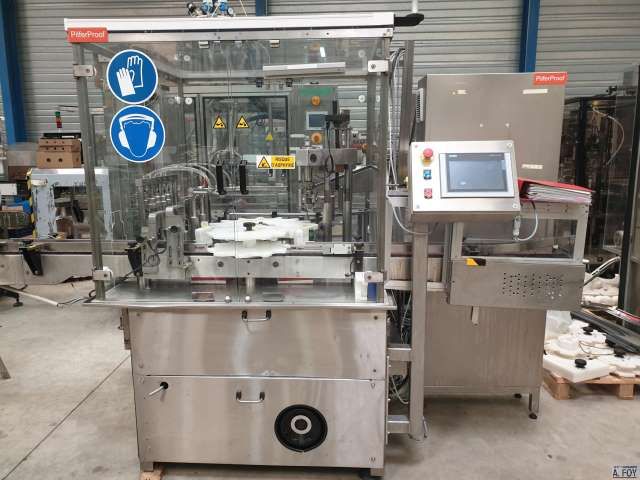

Farmomac, Ima F 57

Filler // rotary filling/capping/screwing machine for vails

Weight : 1600 kg
Dimensions : (L x W x H) 2.90 x 1.40 x 2.00 M

Automatic filler capper crimper for glass or plastic bottles, for liquid and semi-liquid products
Electrical overhaul done in 2018 with touch screen and Siemens plc

Equipped :
- Bottle entry conveyor, with plastic pallets width 82 mm - length 1400 mm
- Bottle transfer inlet tray
- Tray for transferring bottles to packaging stations
- Check station for the presence of bottles before filling
- Product filling station with 4 stainless steel nozzles
- Dosing station produced by 4 volumetric stainless steel pistons adjustable in volume with valve
- Possibility of putting 6 pistons and 6 nozzles
- Cap removal station
- Cap crimping station
- Cap presence control station
- Bottle exit conveyor, with plastic pallets, width 82 mm - length 1400 mm
- Control box and power cabinet
- General training by motor-variator
- Protective guards with security
- Stainless steel frame
- Sold without the vibrating bowl

Current equipment :
- Round bottle diameter : 35 mm (30ml)
- Round bottle diameter : 52 mm (150ml)
- Round bottle diameter : 60 mm (250ml)
- Round bottle diameter : 65 mm (300ml)
- Crimp cap : diameter 30 mm - height 28 mm
- 4 stainless steel filling nozzles : diameter 4 mm
- 4 volumetric stainless steel pistons : 2 pistons of 60 ml and 2 pistons of 100 ml
- Current filling volume 300 ml

Capacity :
- Bottle dimensions :
* Minimum diameter 14 mm - maximum 85 mm
* Minimum height 35 mm - maximum 180 mm
Capacity from 5 to 500 ml by replacing the pistons

Maximum hourly production :
Approximately 1100 to 4800 bottles depending on product and number of pistons

Motor power : 3.5 kW
Compressed air pressure : 4 bars
Overall dimensions of the power cabinet : 0.60 x 0.40 x 1.80 m
