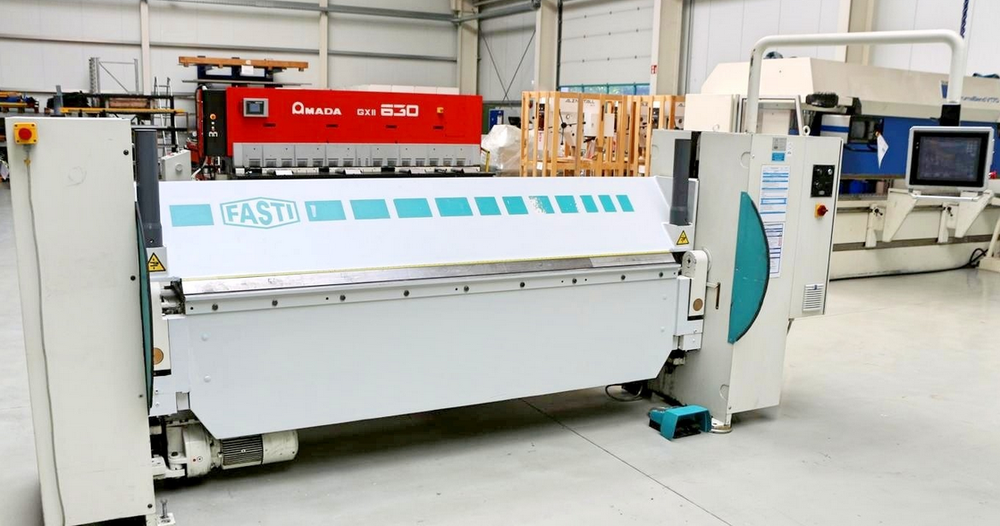

Fasti 221-25-3.0

Folding Machine
Sheet width: 2520 mm
Plate thickness: 3.0 mm
Projection: 350 mm
Swing beam adjustment: 80.0 mm
Back gauge adjustable: approx. 1000 mm

Control: FM 5.1 B
CNC control
FASTI CNC control TOUCH
11.3" color LCD touch screen
Manual / automatic mode selectable
Program memory
Tool memory
Swiveling control unit

Upper clamping bar adjustment: 20.0 mm/sec
Bending speed: 37.0 degree/sec
Total power requirement: 4.5 kW
Weight: approx. 3250 kg

Dynamic electro-motorized folding machine
Upper beam drive by geared brake motor
Bending beam drive with roller bearings
CNC electro-motorized back gauge
Rear sheet support surface
CNC electro-motorized folding beam adjustment
Extra set of FASTI split scribing tools
Emergency stop button with extension cable
Free-moving double foot switch
Free-moving foot switch
Original operating instructions

Minimum bending leg length:
7.0 mm with 0.75 mm sheet thickness
8.5 mm with 1.00 mm sheet thickness
12.0 mm with 1.50 mm sheet thickness
16.0 mm with 2.00 mm sheet thickness
19.5 mm with 2.50 mm sheet thickness
25.0 mm with 3.00 mm sheet thickness
