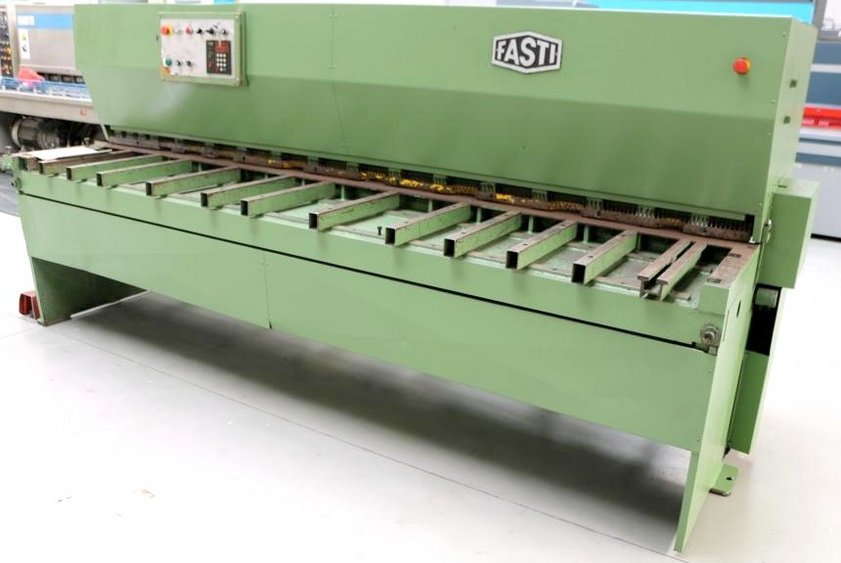

Fasti TCHE 30/4

Cutting width: 3035 mm
Sheet thickness steel: 4.0 mm
Sheet thickness stainless steel: 2.5 mm
Sheet thickness aluminum: 6.0 mm
Strokes: 20 strokes/min
Cutting angle: 1.7°
Working height: 900 mm
Control: NC
Control system: ELGO Type 85
Total power: 8.5 kW
Machine dimensions: 3416 x 2250 x 1760 mm
Machine weight: 4400 kg
NC electro-hydraulic guillotine shear
NC motorized backgauge
Manual cutting gap adjustment
Front support table
Side stop with scale
Tilting cam
Front support arms
Foot switch
Finger guard
Rear metal slide
Emergency stop button
Operating instructions PDF
