Fasti 509-25/4

Plate width: 2503 mm
Plate thickness steel: 4.0 mm
Plate thickness stainless steel: 2.5 mm
Plate thickness aluminum: 6.0 mm
Number of strokes loaded: 15-20 strokes/min
Cutting angle: 1.7°
Work height max.: 900 mm
Control: ELGO Type 85
Total power requirement: 8.5 kW
Machine weight: 3400 kg
Machine dimensions (LxWxH): 2913x2250x1760 mm

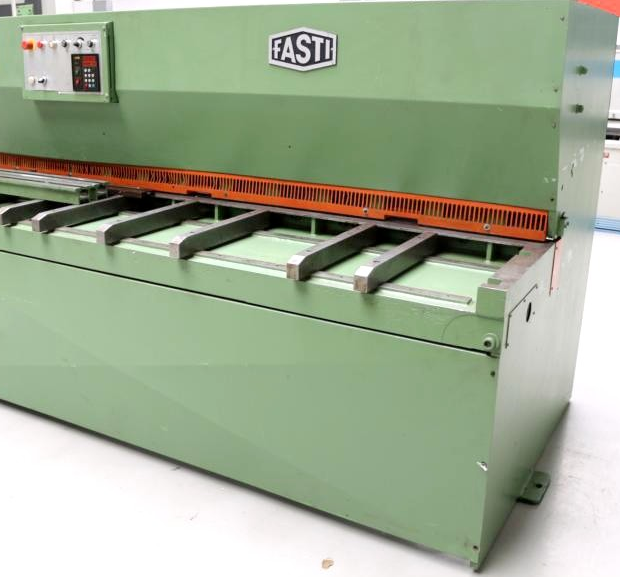

NC electro-hydraulic guillotine shear
NC electro-motorized backgauge with ELGO control
Manual cutting gap adjustment
Front support table with recessed grips
1 side stop with scale and tilting cam
2 front support arms
1 foot switch
Front finger guard
Front emergency stop button
Operating instructions (PDF)
