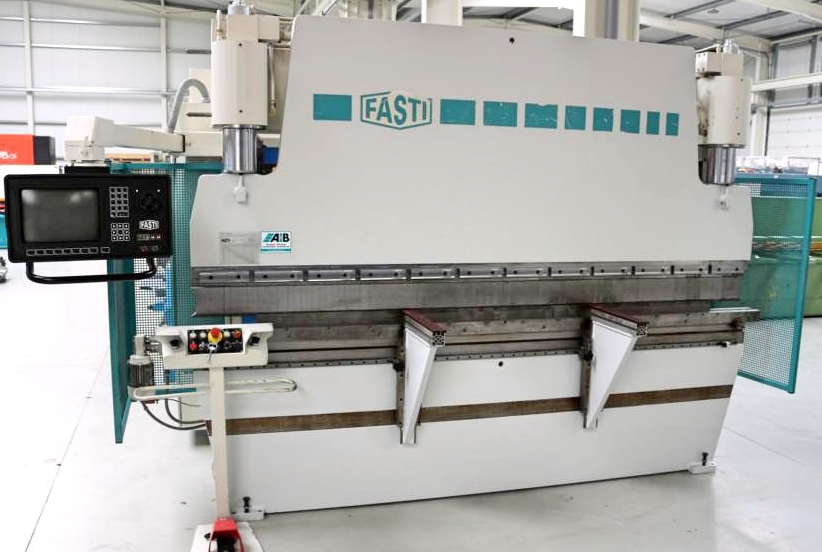

Fasti 904-125/30 125 t

Press force: 125 t
Chamfer length: 3050 mm
Distance between columns: 2550 mm
Adjustment speed: 90.0 mm/sec
Working feed: 10.0 mm/sec
Return speed: 75.0 mm/sec
Stroke: 140 mm
Daylight: 375 mm
Column arm: 250 mm
Table width: 90.0 mm
Work height max.: ca. 950 mm
Operating hours: 14,100 h
Total power requirement: 13.5 kW
Weight: 8500 kg
Machine size (L-W-H): 3630 x 2300 x 2505 mm

Features / Equipment
CNC electro-hydraulic press brake
DELEM CNC control DA 58
Swiveling control panel, front left
2D graphic programming & product display
Tool & program library
CNC-controlled axes Y1+Y2
CNC-controlled axes X1+X2
CNC-controlled axes R1+R2
CNC-controlled axes Z1+Z2
CNC crowning
CNC electro-motorized backgauge (X axes)
Stop system with 2x CNC-controlled gantries
CNC electro-motorized height adjustment of the backgauge (R axes)
CNC electro-motorized adjustment of the stop fingers (Z axes)
Manual upper tool clamping
Manual lower tool clamping
Various split upper and lower tools
2x stable movable front support arms
1x freely movable 2-hand/foot control
Side guard (swinging doors)
Rear guard (swinging door)
Original operating instructions + control unit
Manufacturer's CE declaration
