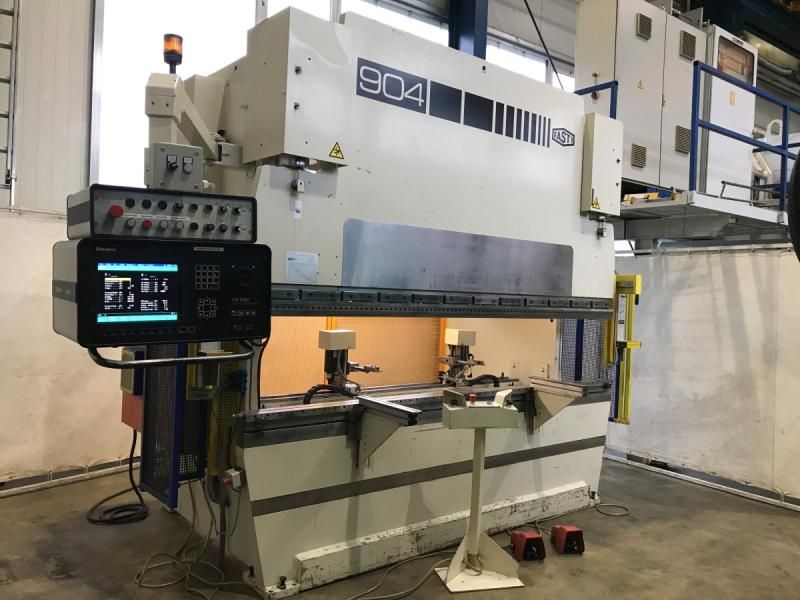

Fasti 904-125/30 125 ton

Press force: 125 ton
Working length: 3,050 mm
Slider stroke: 335 mm
Frame reach: 300 mm
Clearance between side frames: 2,550 mm
Maximum tool installation height: 465 mm
Table width: 90 mm
Table height over floor: 875 mm
Back gauge X-axis: 500 mm
Back gauge R-axis: 115 mm
Back gauge Z-axis: 1,950 mm
Y-axis rapid speed: 90 mm/s
Y-axis working speed: 8.9 mm/s
Y-axis return speed: 75 mm/s
Oil capacity: 160 liters
Motor power: 18.5 kW
Power supply: 400 V, 50 Hz, 20 A
CNC control: 7-axis DELEM DA 58 with LCD
Back gauge depth axis: 1 axis
Back gauge height axes: 2 axes
Side-adjustable back gauge fingers: 2 axes
Press beam axes with servo valves and measurement system: 2 axes (Y1 and Y2)
Operation: Electro foot pedal and 2-hand control panel or 2-hand control panel only
Hydraulic clamping for upper tool: TRUMPF system, 20 mm clamping groove
Hydraulic clamping for lower tool: 13 mm table groove, 21 mm depth, tool pin 13 x 20 mm
Safety light barrier: FIESSLER AKAS
Material support arms, front, manually adjustable sideways and height: 2 pieces
Electrical, hydraulic plans and CNC manual included
Machine cabinet included
Without tools
Required space L x W x H: 5,000 x 2,500 x 3,050 mm
Transport dimensions L x W x H: 5,200 x 1,900 x 2,950 mm
Machine weight: 8.5 ton
Condition: Good
