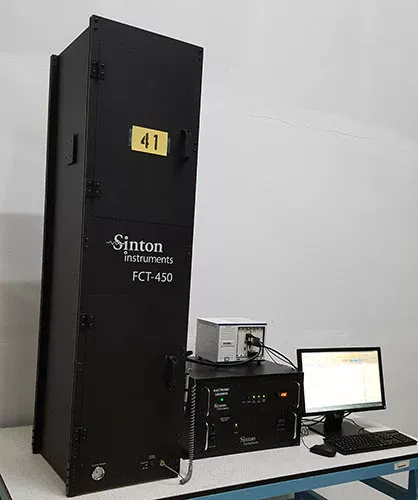

FCT-450 Flash Cell Tester Light I-V Testing

Sinton Instruments FCT 450 Flash Cell Tester Light I-V Testing for Solar Cells.
Advanced analysis of solar cells including light I-V and Suns-Voc data.
Capability to accurately measure high-efficiency conventional or
backside-contact solar cells.

Product Overview:
The FCT-450 has been designed to have the highest possible accuracy for
measuring high-efficiency solar cells.
This is done using patented Voltage Modulation to neutralize the capacitive effects in
I-V measurements.
The Sinton analysis package includes standard cell test outputs.
It is supplemented with the Suns-Voc analysis that precisely indicates the
source of power loss with accurate shunt and series resistance measurements.

System Capabilities Primary application:
• One-sun cell flash testing

Analysis techniques:
• Suns-Voc curve
• 5-point testing utilizing Suns-Voc, Jsc, Vmp
• I-V curves at multiple intensities (MultiSuns Analysis)
• Efficiency versus intensity characteristic. 100-240V, 50/60Hz, 15A
