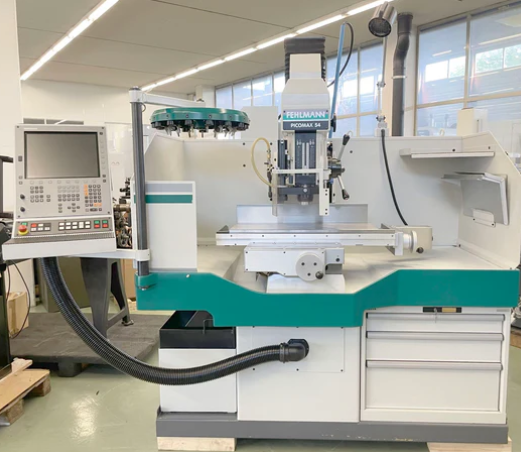

Fehlmann PICOMAX 54 7100 t/min

Drill capacity in steel: 28 mm
Thread cutting in steel: M24
Milling capacity: 100 cm³/min
Spindle stroke: 160 mm
Spindle speeds: 50–7100 t/min
X-axis travel: 500 mm
Y-axis travel: 260 mm
Z-axis travel: 480 mm
Table length: 880 mm
Table width: 320 mm
Minimum distance table to spindle: 0 mm
Maximum distance table to spindle: 610 mm
X-axis feed: 1–2000 mm/min
Y-axis feed: 1–2000 mm/min
Z-axis feed: 10–1200 mm/min
Table load max: 300 kg
Voltage: 3x 400 V, 50 Hz
Spindle power: 8 kW
Total power required: 10 kW
Machine weight: 2150 kg
Overall length: 2200 mm
Overall width: 1800 mm
Overall height: 2400 mm
Control: HEIDENHAIN TNC 320
Set of drill chucks
Tool storage
Lamp
Set of toolholders
Renishaw touch probe
