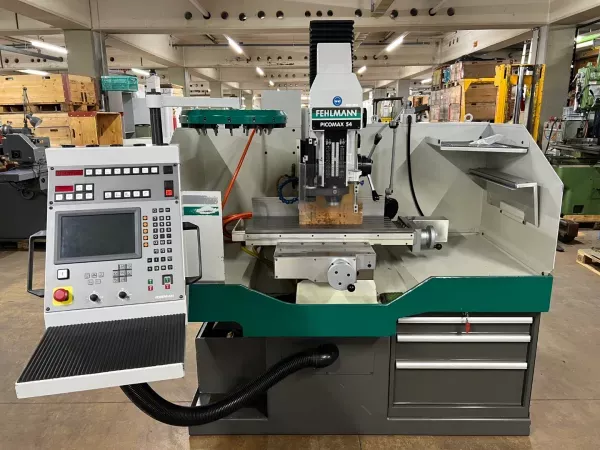

Fehlmann PICOMAX 54 9000 rpm

X-axis travel: 500 mm
Y-axis travel: 260 mm
Z-axis travel: 490 mm
W-axis travel (quill): 160 mm
Feed X and Y: 1–2000 mm/min
Feed Z: 500–2000 mm/min
Rapid traverse X and Y: 2 m/min
Feed force X and Y: 4000 N
Target accuracy X and Y: 0.005 mm
Repeatability X and Y: 0.003 mm
Repeatability Z: 0.020 mm
Work table area: 880 × 320 mm
T-slots: 5, 12-H8, 50 mm spacing
Table load capacity: 300 kg
Distance to spindle nose: 0–110–610 mm
Spindle nose: SF32
Spindle speed: 100–9000 rpm
Drilling capacity: 25 mm
Milling performance: 100 cm³/min
Thread capacity: M24
Control: Heidenhain TNC 310
Machine dimensions: 1800 × 2700 × 2500 mm
Machine weight: 2400 kg

Vice
Fehlmann SF32 tool holders
Optics
Measuring probe
Collet set
Complete operational documentation
