Fehlmann PICOMAX 54 Vertical 7100 rpm
EUROPE (Western and Northern)

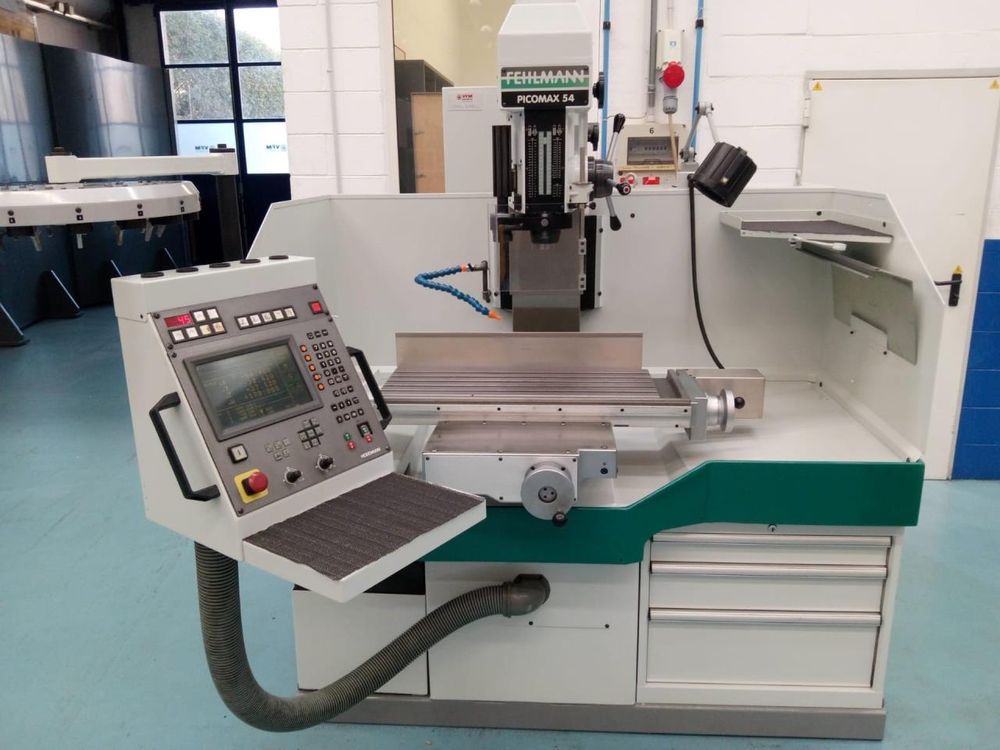

FEHLMANN PICOMAX 54
Controller : HEIDENHAIN TNC 310
Drill capacity in steel28 mm
Threat cutting in steel M24
Milling capacity100 cm3/min
Spindle stroke160 mm
Spindle speeds :stepless7100 rpm
Table length880 mm
Table width320 mm
Min. distance from table to spindle0 mm
Max. distance from table to spindle610 mm
Longitudinal travel500 mm
Transversal travel260 mm
Vertical travel480 mm
Feeds:
X axis1 - 2000 mm/min
Y axis1 - 2000 mm/min
Z axis10 - 1200 mm/min
W axis500 - 2000 mm/min
Table load max.300 kg
Voltage 50 Hz 3x400 Volt
Spindle power7.5 kW
Total power required10 kW
Machine's weight about895 kg
Overall dimensions machine:
Length2200 mm
Width1800 mm
Height2400 mm
Various accessories:
Set of drill chucks
Tool storage
Lamp
Set of toolholders
