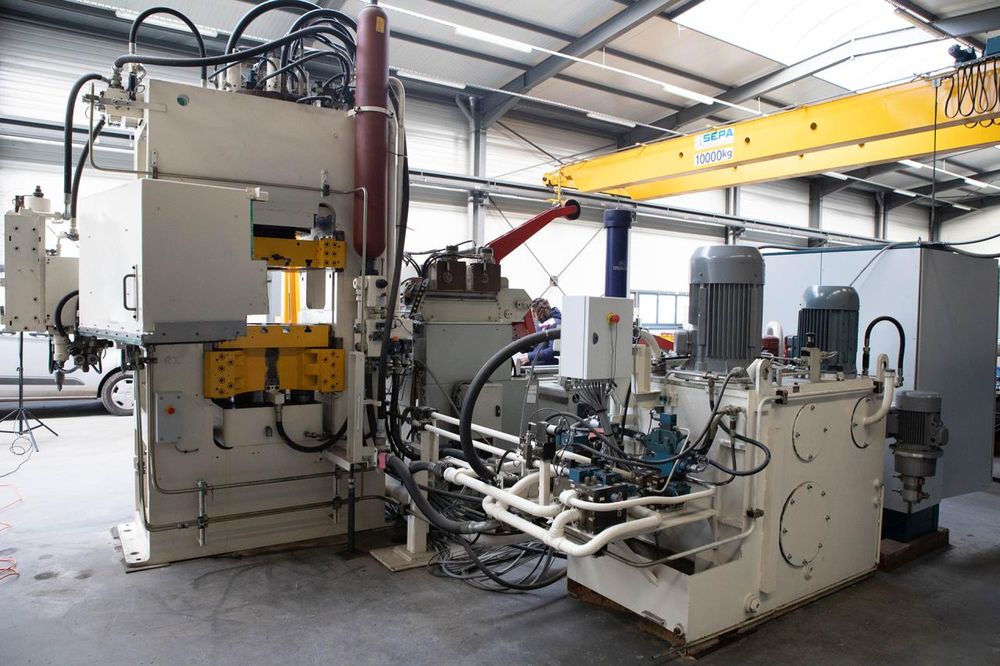

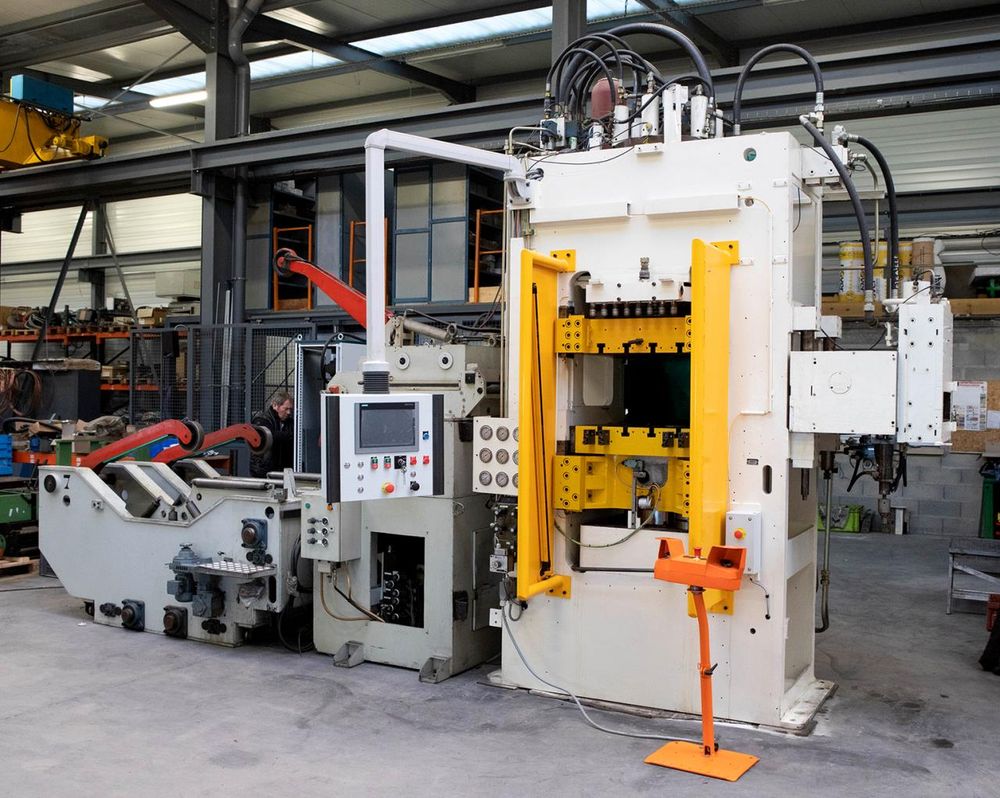

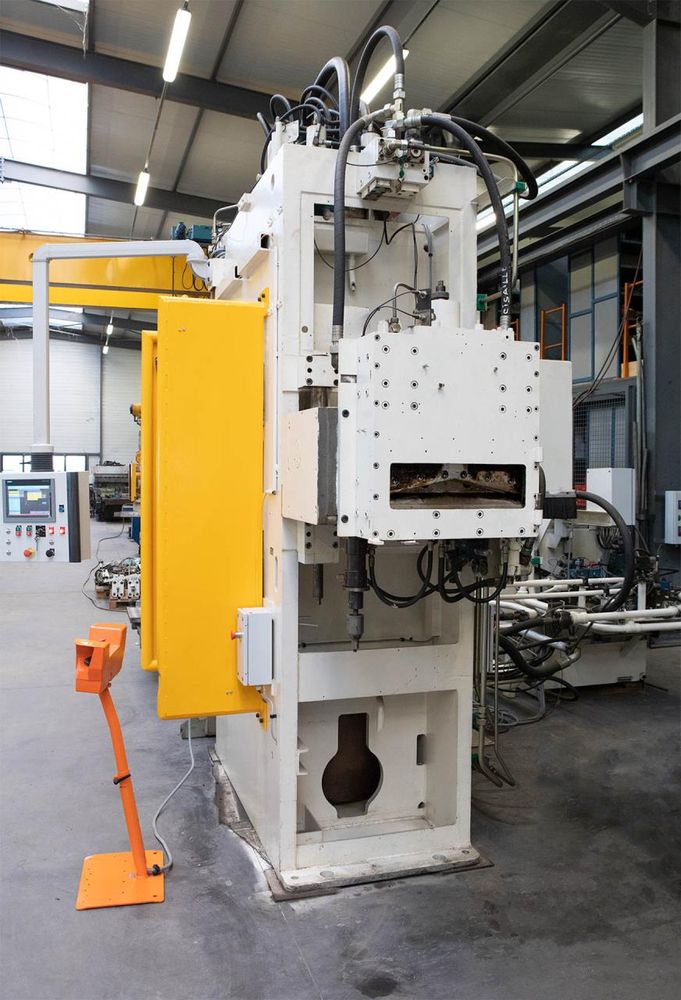

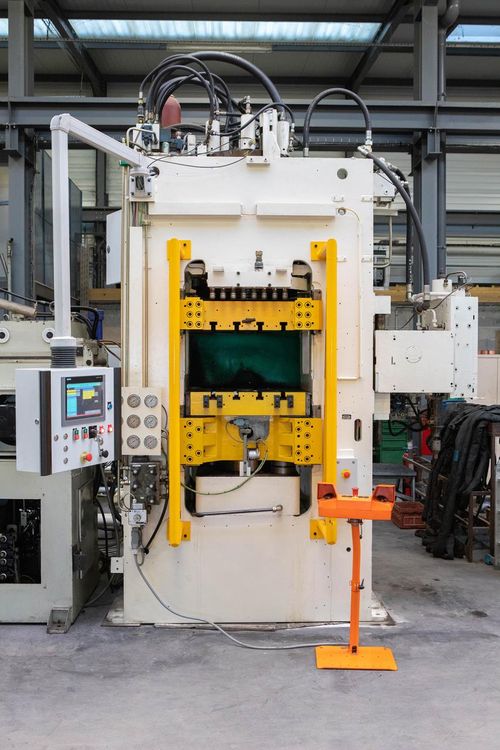

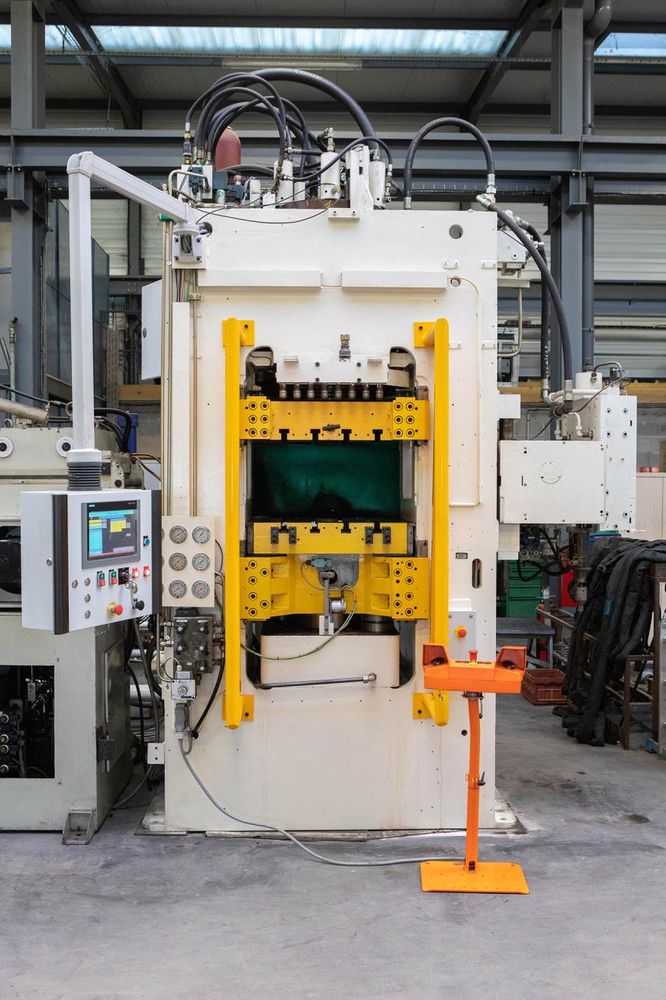

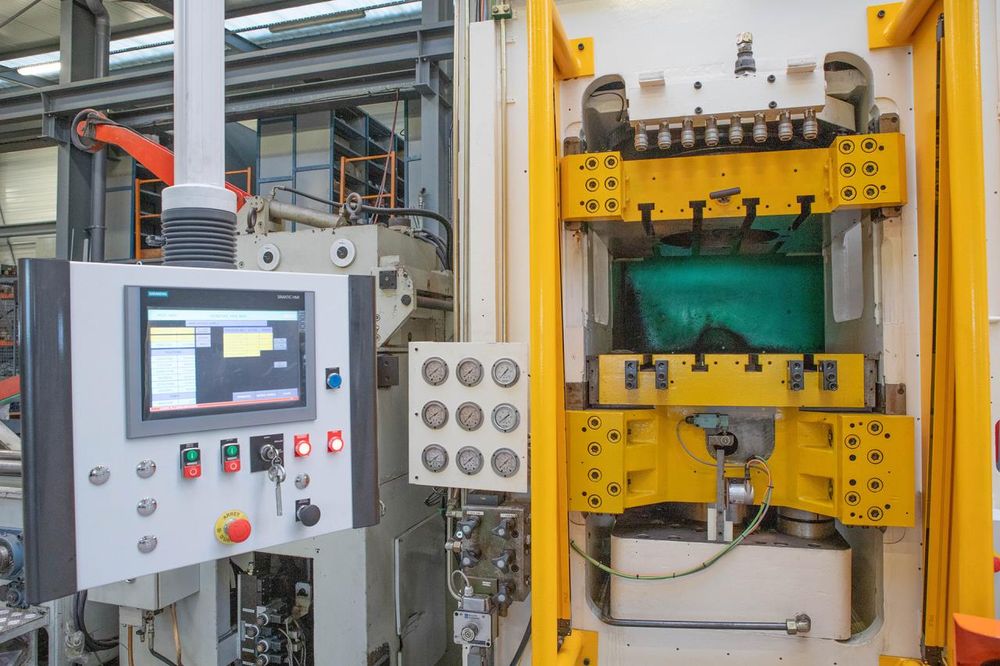

Feintool HFA 400 4000 kN

Fine blanking Machine
FEINTOOL HFA 400

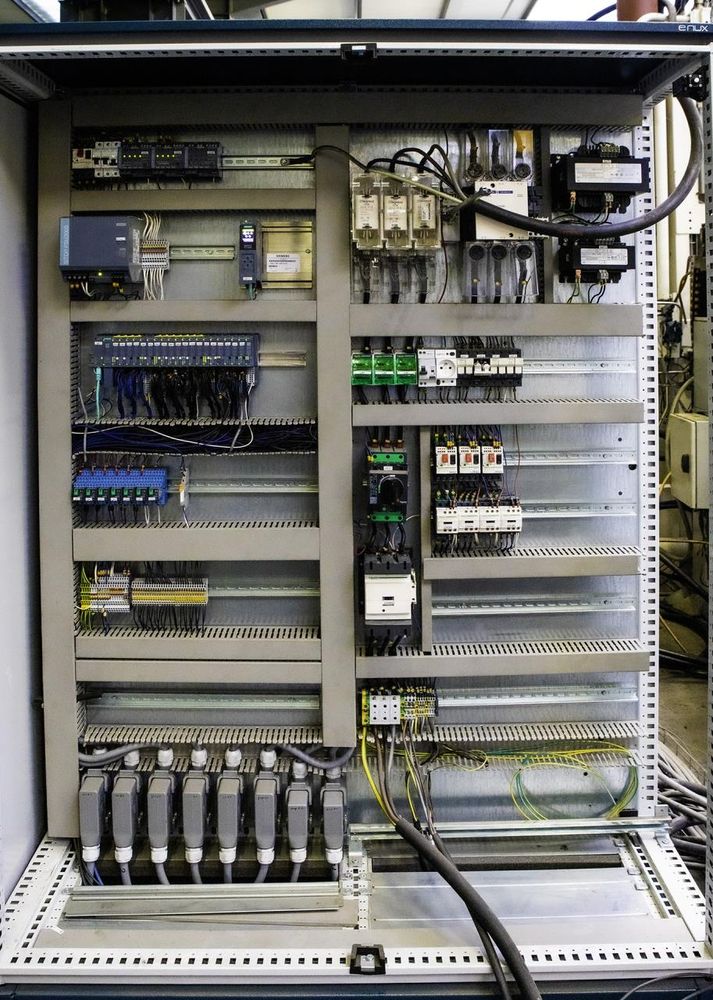

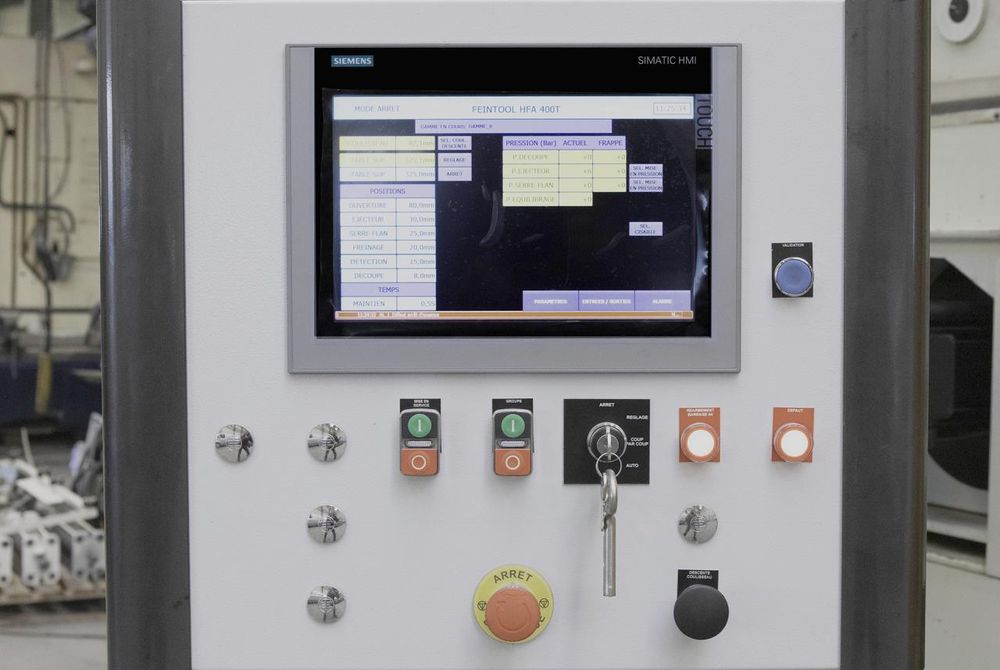

Controller :SIEMENS SIMATIC HMI
Total capacity
4000 kN
Vee-ring indenter pressure
1800 kN
Back pressure
800 kN
pushing ram force
300 kN
Stripping force
590 kN

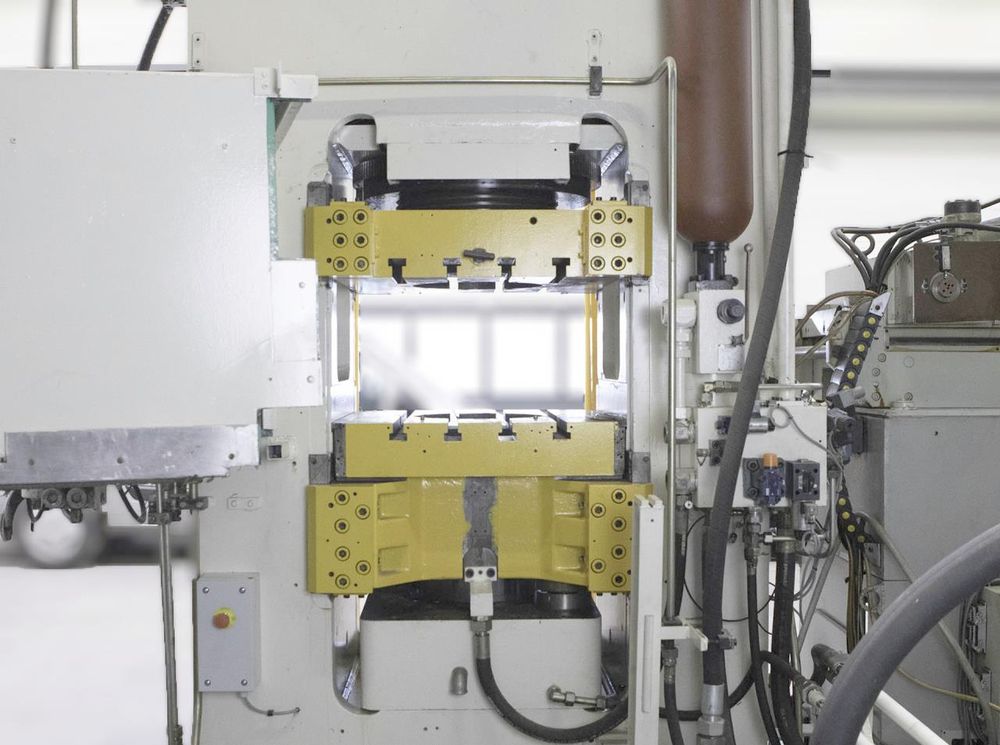

Tool clamping surface:
superior: length
800 mm
Width
800 mm
inferior: length
1000 mm
Width
810 mm
Speeds:
Cutting speed:
from
5 mm/s
up to
50 mm/s
Close traverse speeds max.
120 mm/s
Return traverse speeds
135 mm/s
Number of strokes:
up to
150 / 230 s/min
Voltage 50 Hz 3x
380 Volt
Main motor
75 kW
Total power required
82 kW
Machine's weight about
21700 kg
Overall dimensions machine:
Length
5000 mm
Width
3300 mm
Height
3360 mm

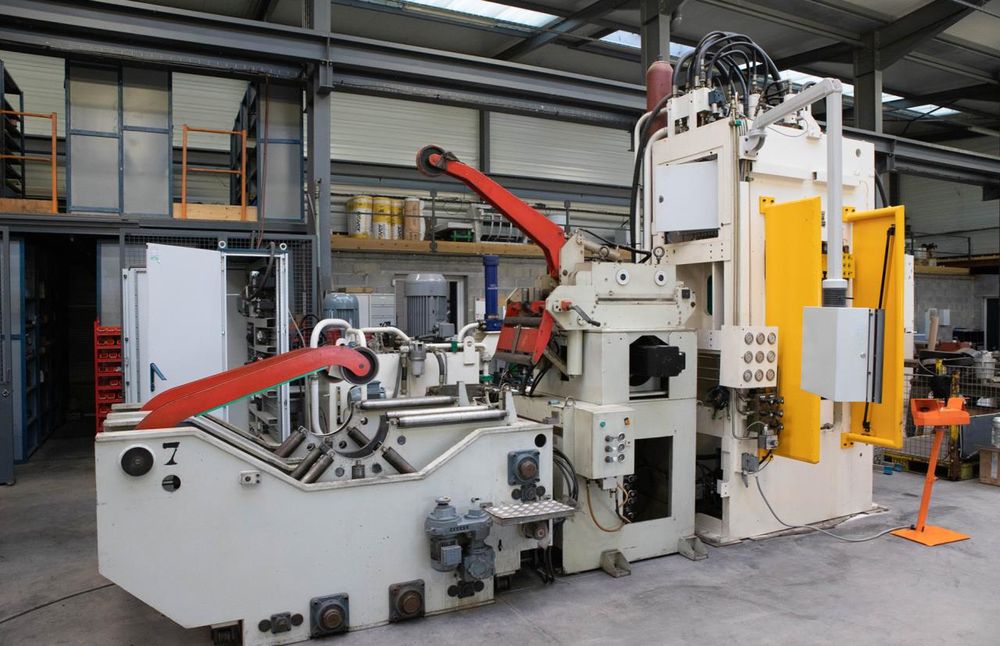

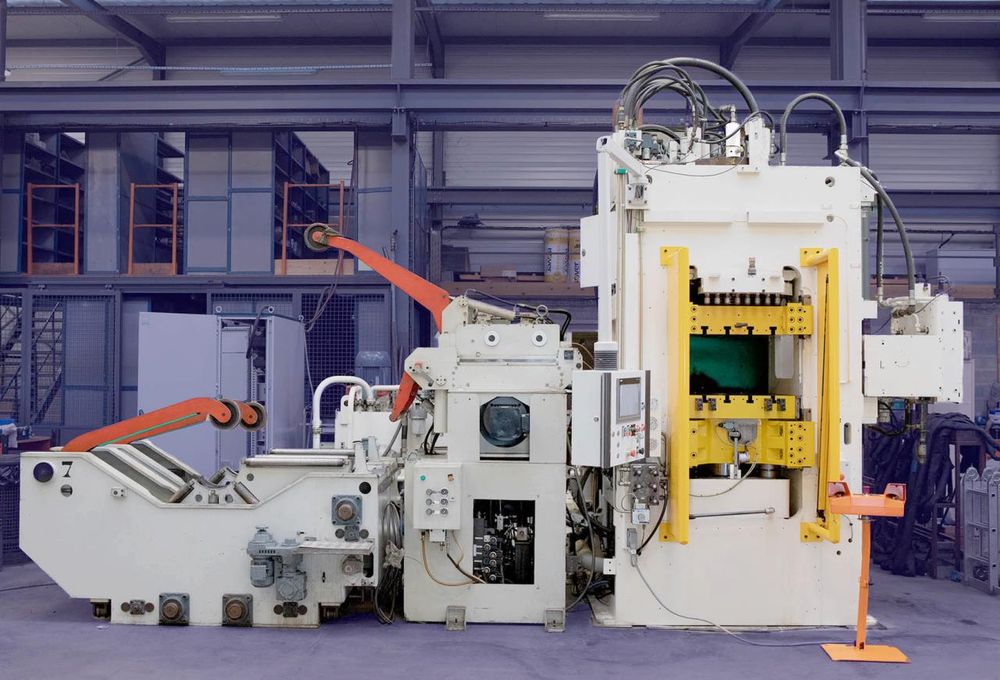

Various accessories:

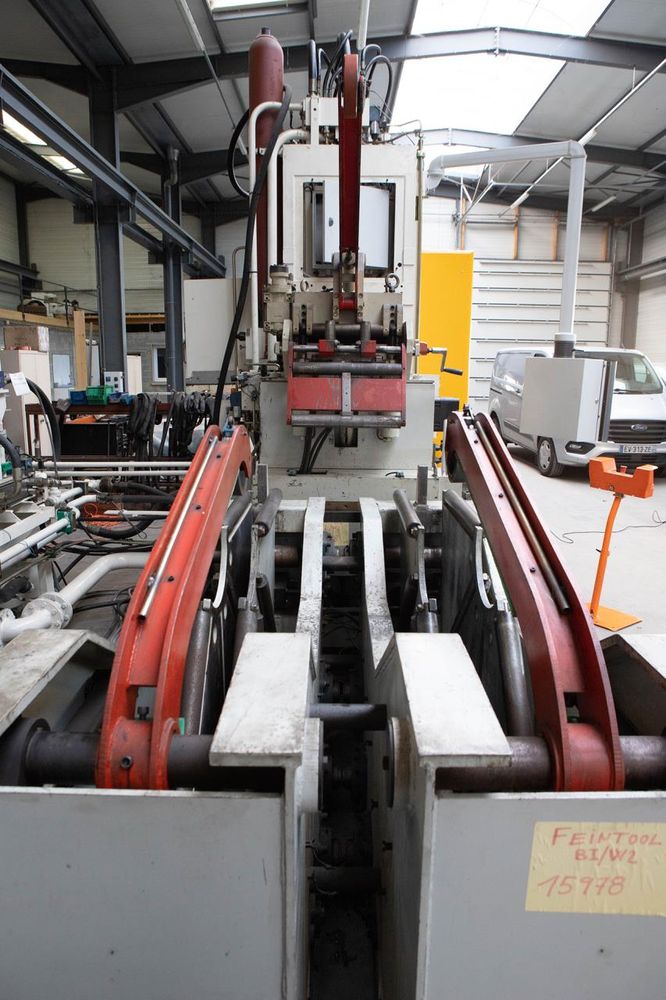

Roll-feed
Belt feeding
Decoiler
