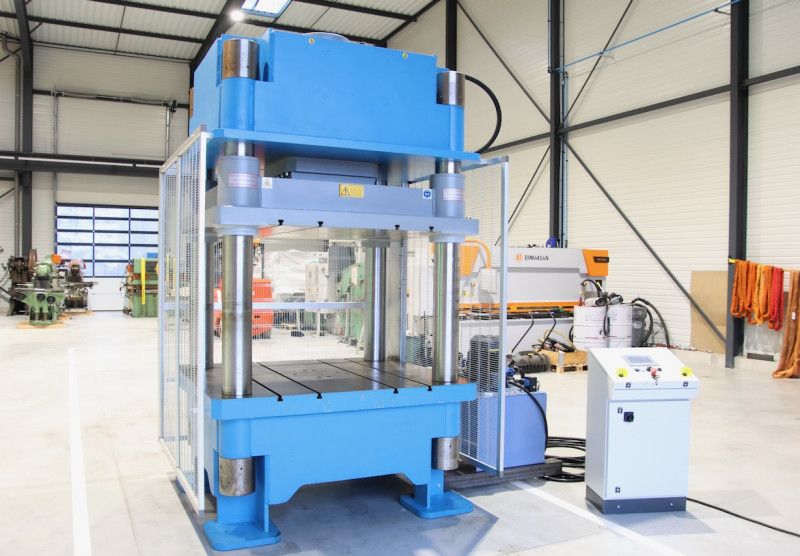

Sicmi PSQ 300 A 300 tons

Press force 300 tons
Stroke 500 mm
Front opening between columns 1250 mm
Lateral opening between columns 1000 mm
Distance between table and slide 1000 mm
Approach speed 20 mm/sec
Working speed 2 mm/sec
Lower table size 1250 × 1000 mm
Upper table size 1250 × 1000 mm
Maximum pressure 350 bar
Main motor power 7.5 kW
Machine dimensions (L × W × H) 2000 × 1750 × 3300 mm
Machine weight 14,000 kg
Control Siemens digital control with touchscreen
Stroke limits adjustable for upward and downward motion
Pressure holding time adjustable
Decompression time adjustable
Coin counter
Up/Down prestop accuracy 0.1 mm
Alarm management
Program storage for up to 100 programs
Manual and automatic operating modes
Stroke read by wired encoder
Pressure read by transducer on hydraulic unit
