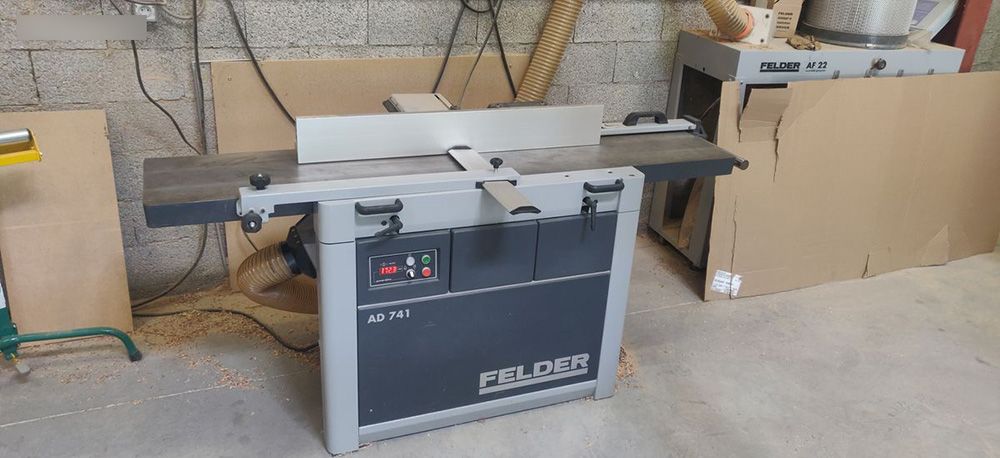

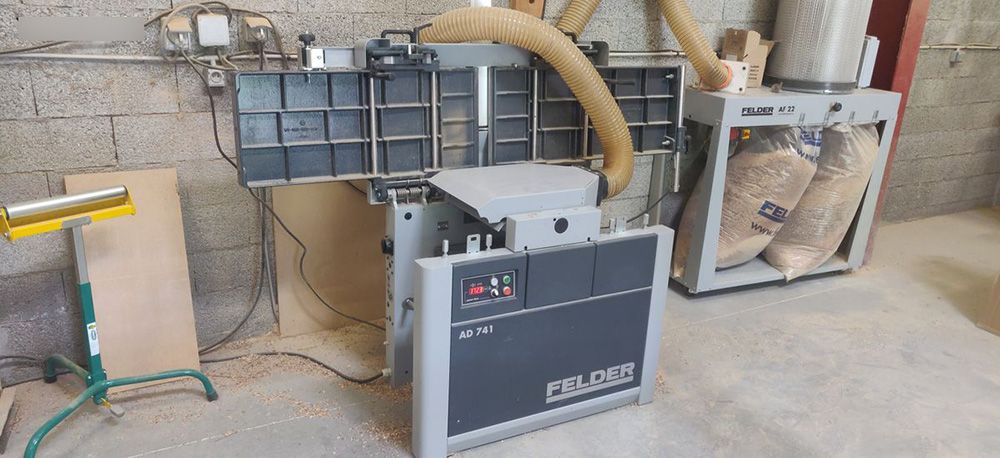

Felder AD741

Planer-thicknesser with a helical spindle with inserts and automatic planer table up/down.
The infeed and outfeed tables were factory-set in January 2025 by FELDER (invoice available).

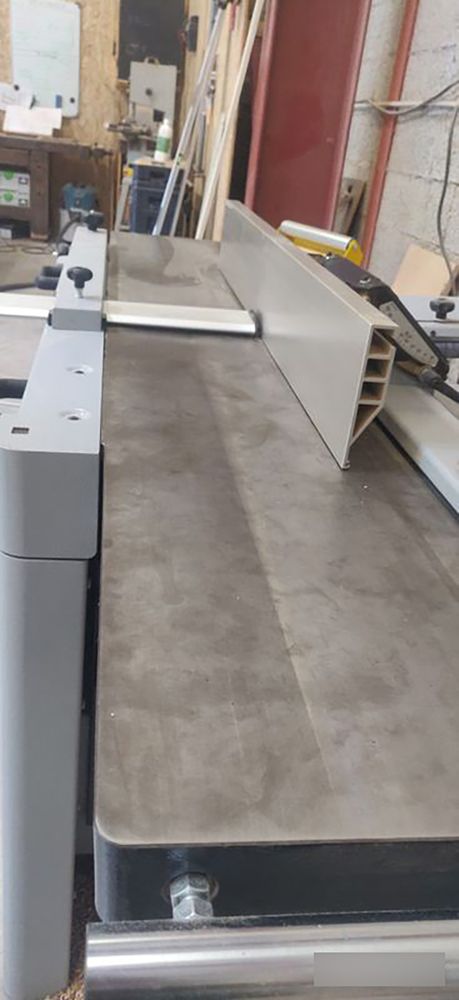

Planing width: 410 mm
Planing table length: 2000 mm (optionally extendable to 3800 mm)
Planing width: 404 mm
Planing height (min. - max.): 3 - 230 mm
Max. chip intake: : 4 mm
Planing feed speed: 6 + 12 m/min (two speeds)

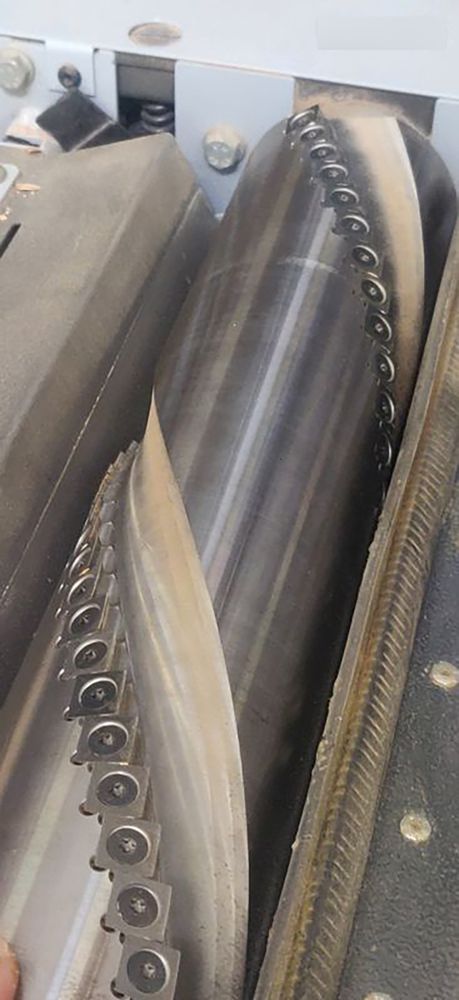

Silent-Power® helical planer spindle (63 planer blades)
Planer fence: Anodized 1100 x 150 mm (standard)
Motor: 4.0 kW (5.5 hp), 5.5 kW (7.5 hp), 7.35 kW (10.0 hp)
Power-Drive planer table control (electric adjustment with digital display)
Vacuum connection diameter: 120 mm
Weight (standard configuration): Approx. 500 kg
Working height: 890 mm
