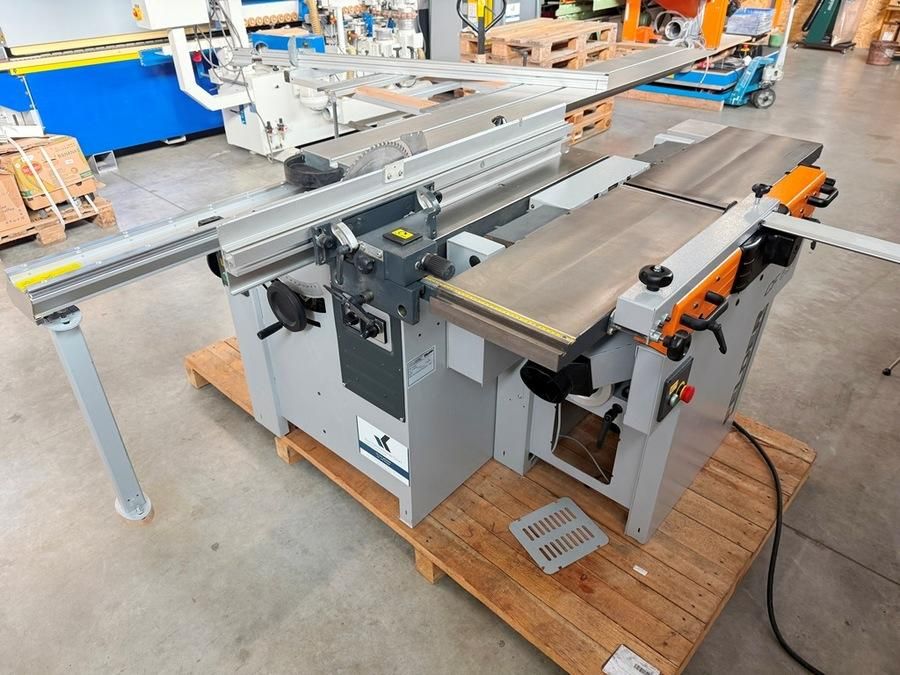

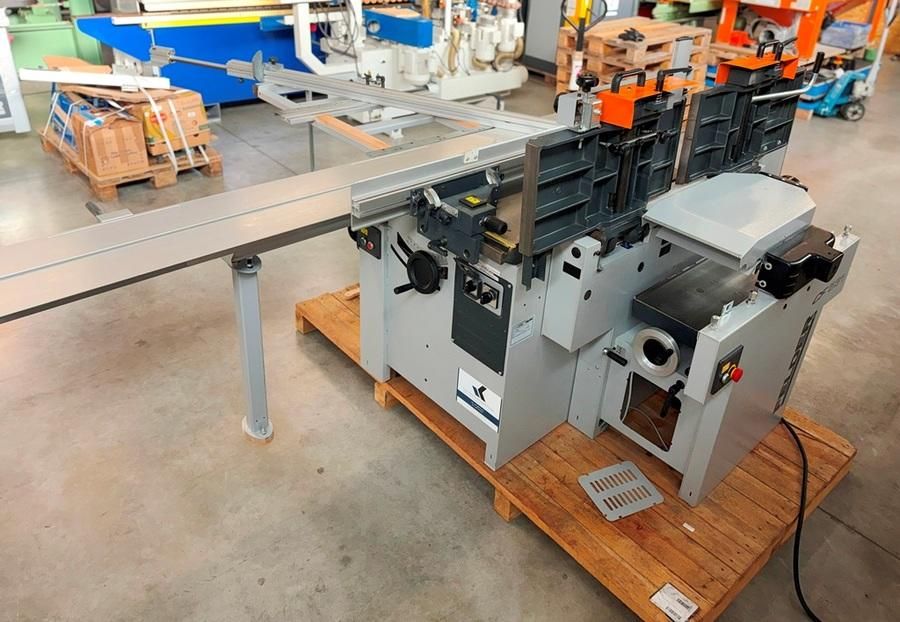

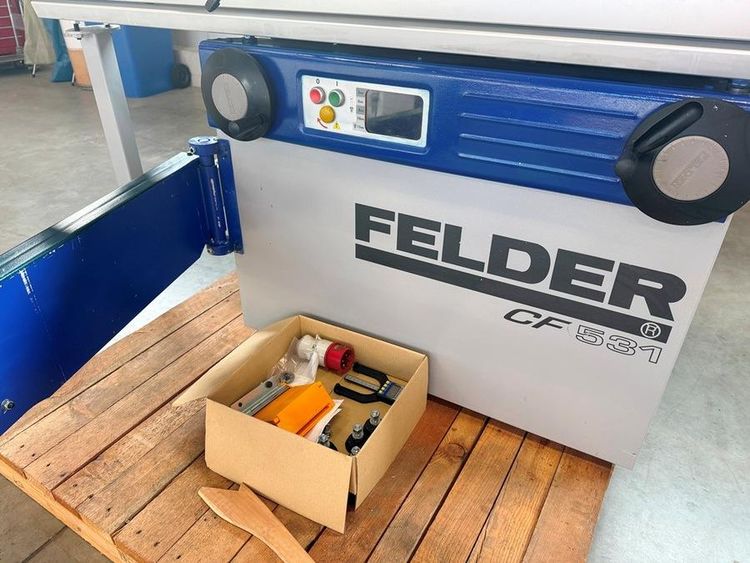

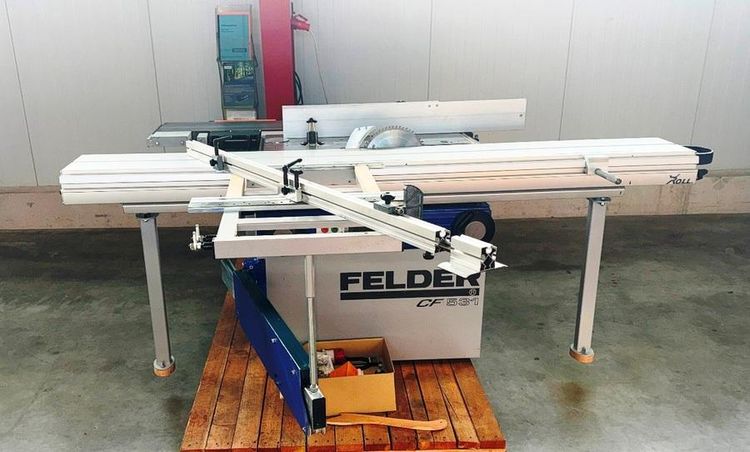

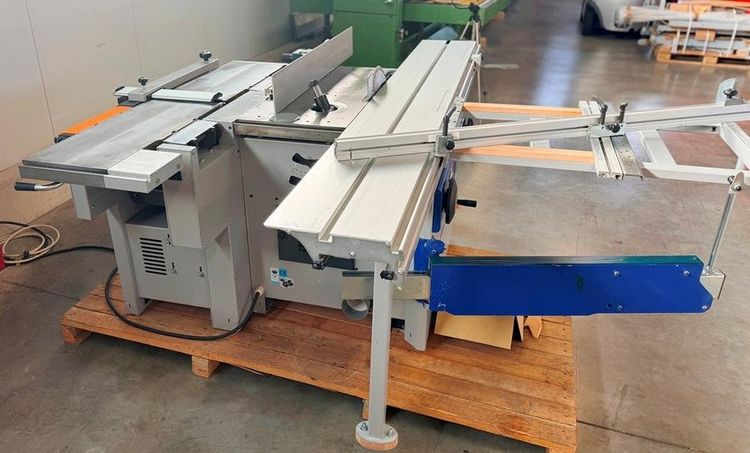

Felder CF 531

5-fold combined machine
very good condition

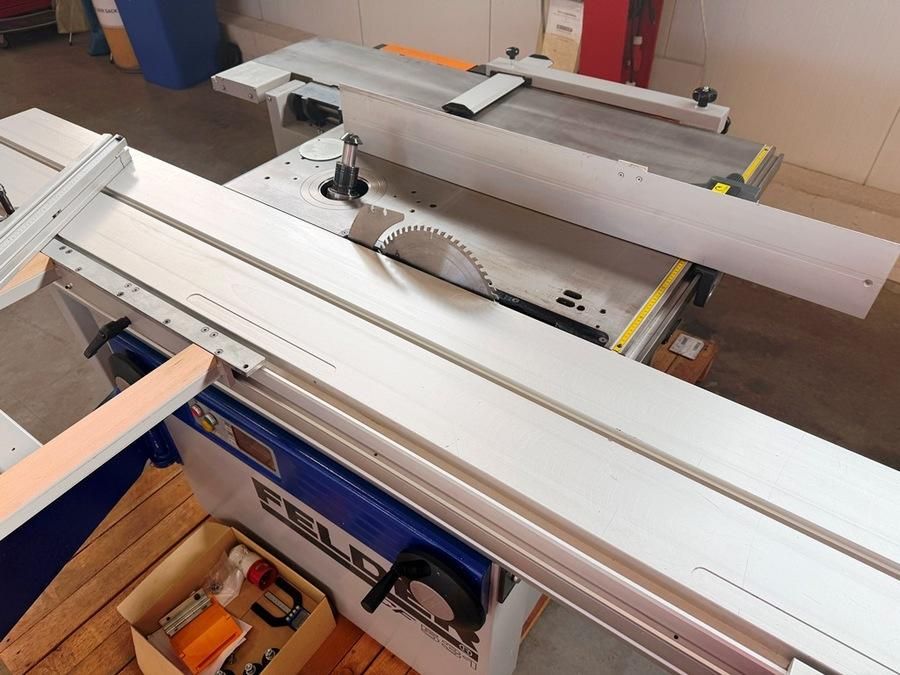

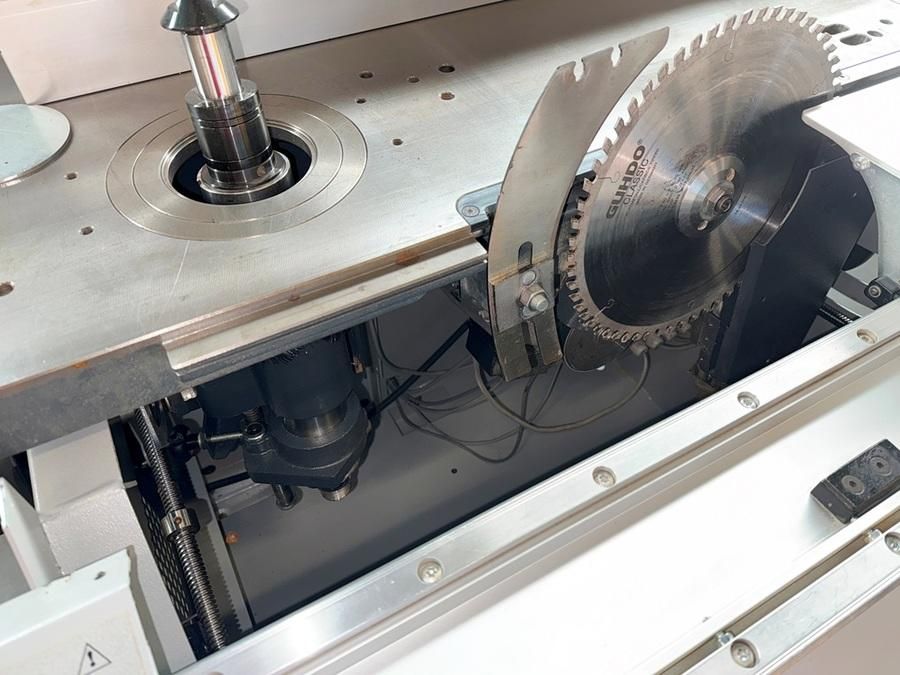

Circular saw tiltable - table router tiltable - surface planer / thickness planer - preparation for long hole drilling support / long hole drilling device

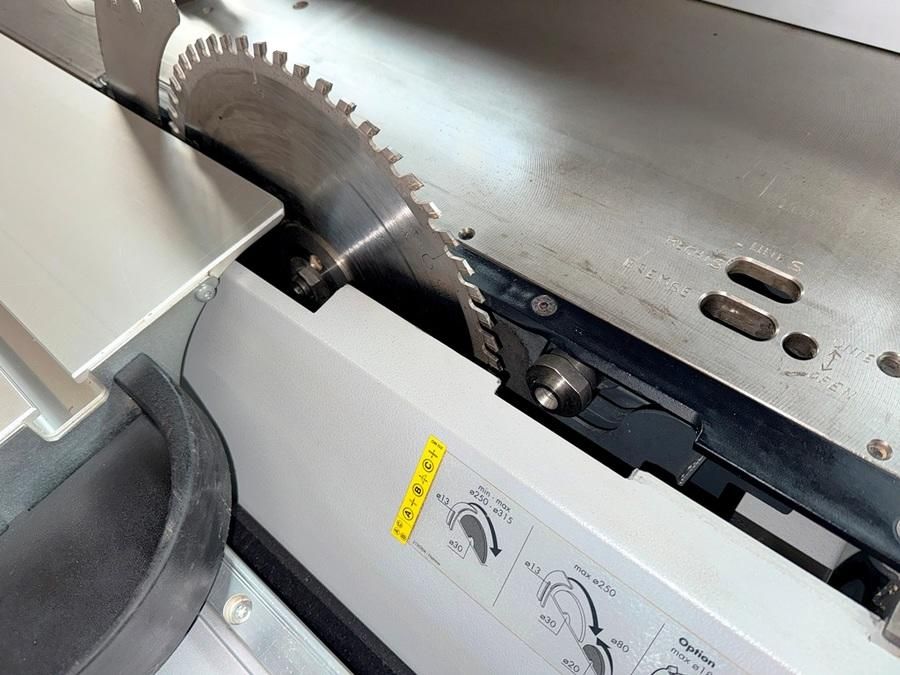

Circular saw Motor power 3 kW

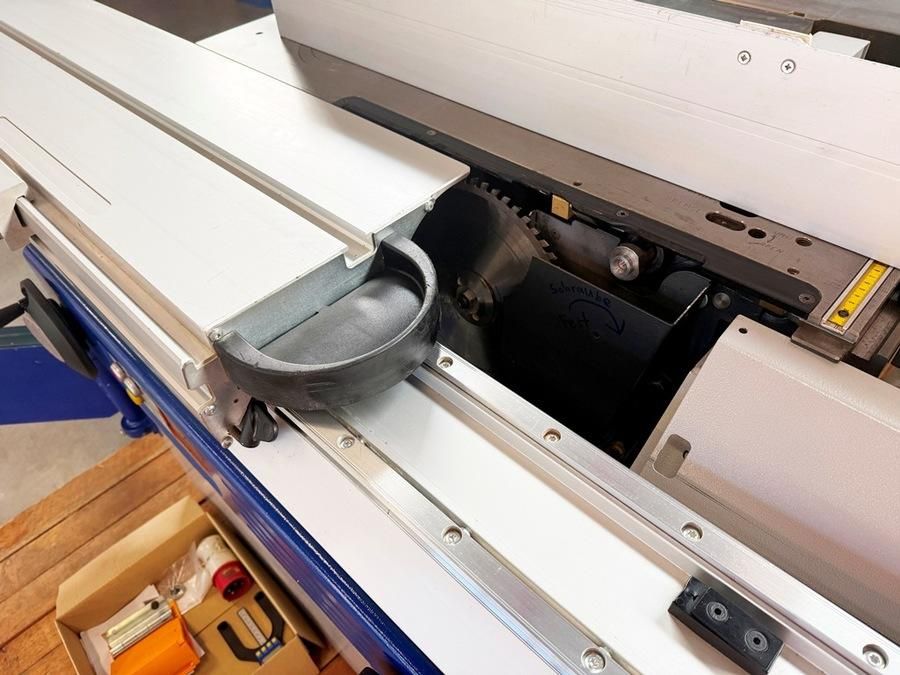

Scoring unit

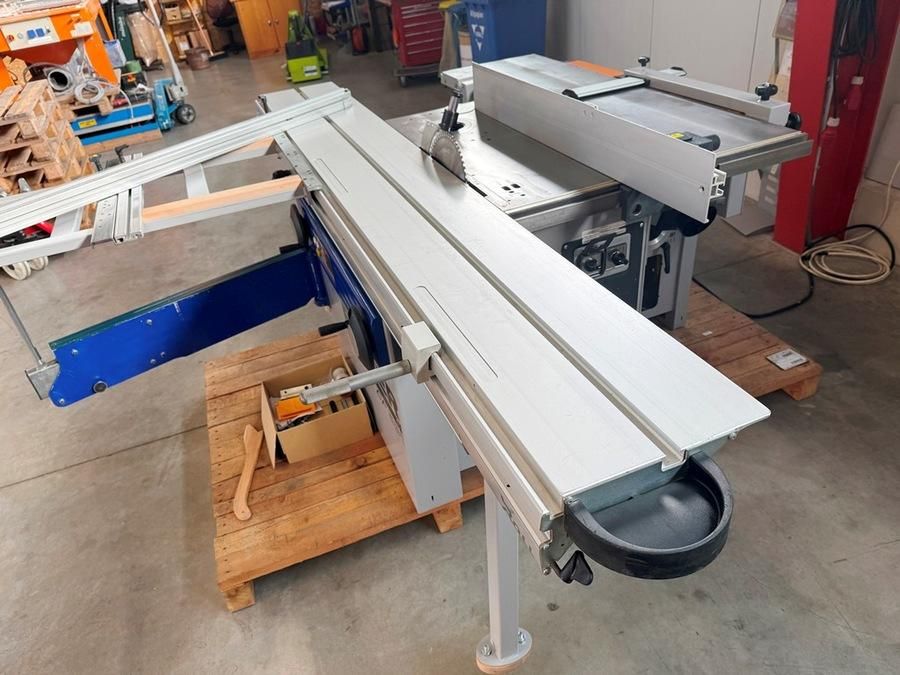

Sliding table 2500 mm long

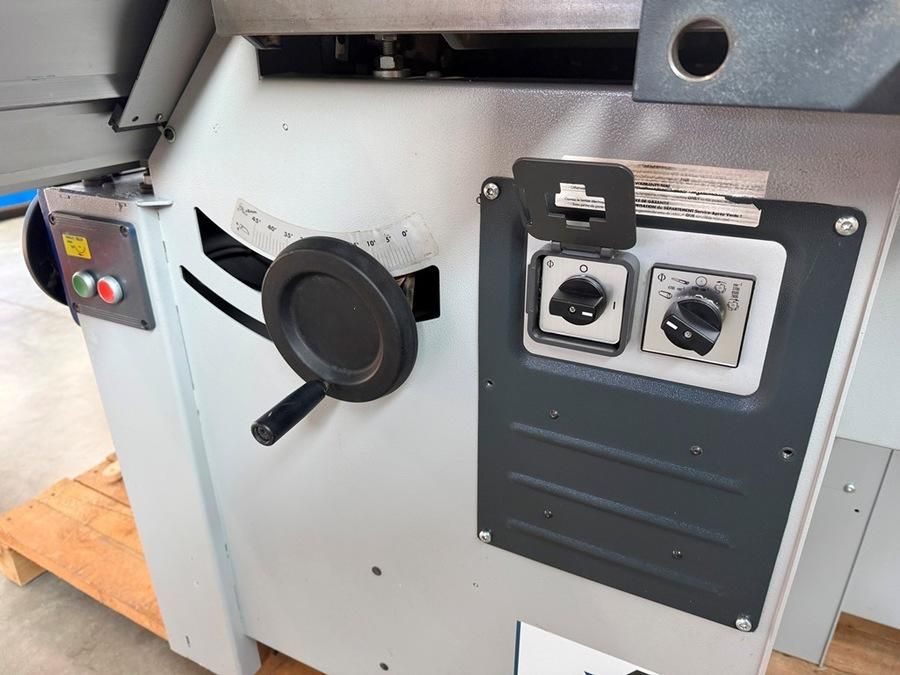

Manual saw blade tilting 90° - 45°
Saw blade diameter 250 - 315 mm
Spindle diameter 30 mm
Cutting height max. 102 mm
Cutting width approx. 800 mm

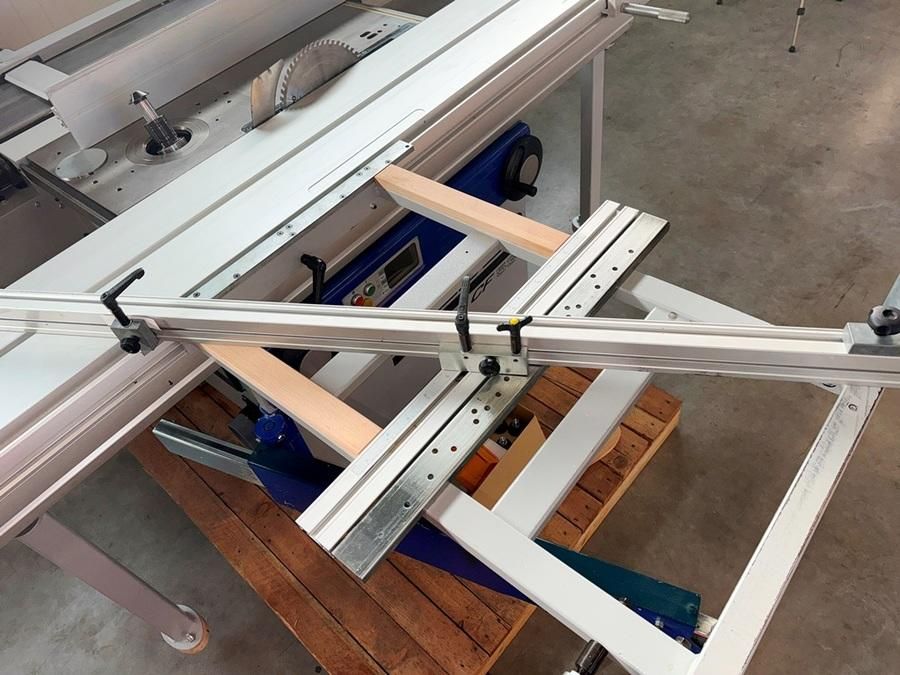

Outrigger table with telescopic cross-cut fence
Pivoting cross-cut fence with degree scale

Moulder Motor power 3 kW
Moulder table opening diameter 180 mm
Maximum cutter diameter 300 mm
Spindle diameter 30 mm
Manual spindle swivel 90° - 45°

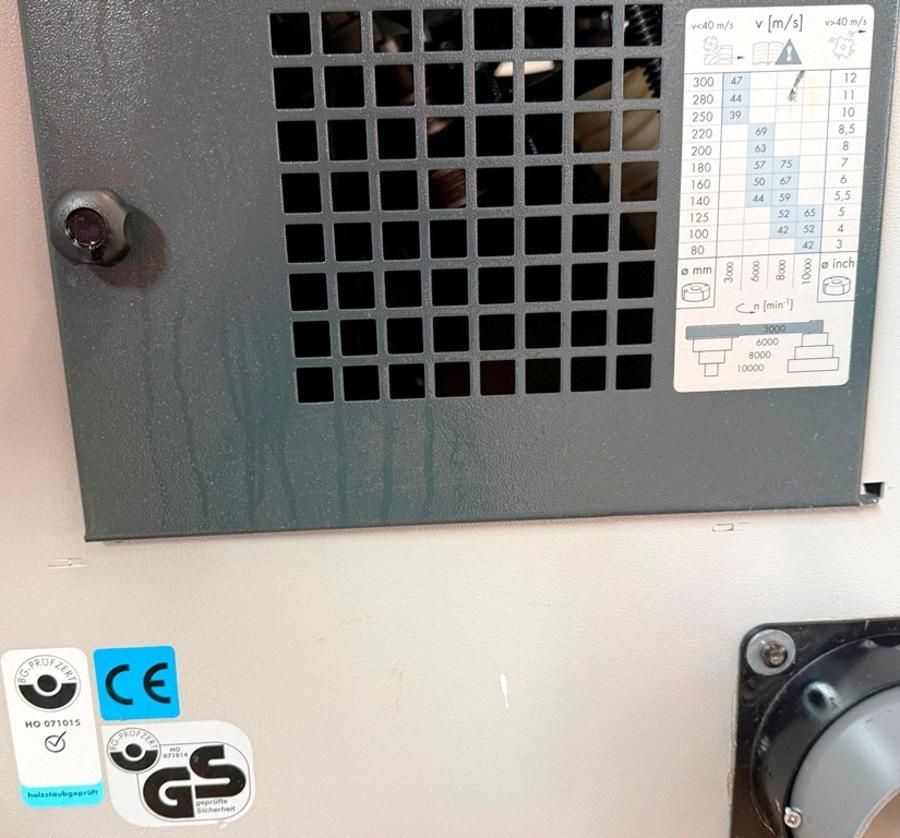

Speed 3000 / 6000 / 8000 / 10000 rpm

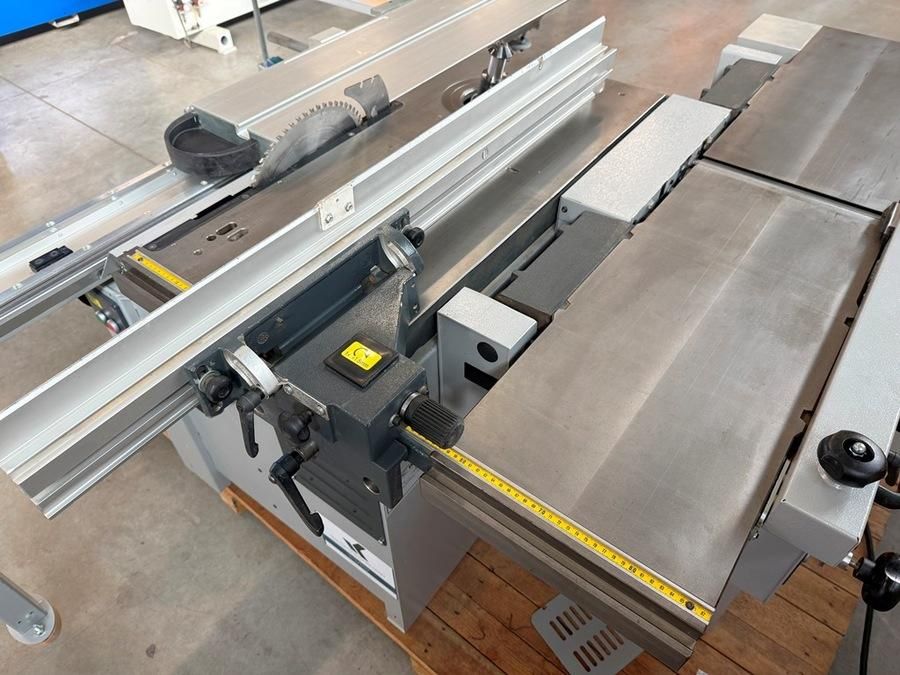

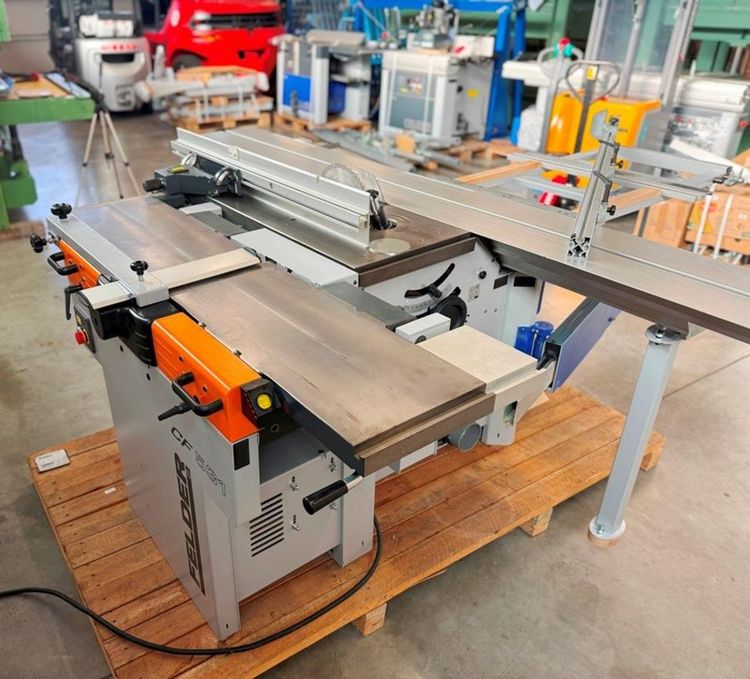

Planer Motor power 3 kW
4-knife planer shaft
Planer Table length 1500 mm
Planer Table width 310 mm
Chip removal max. 5 mm
Parallel fence pivotable 0° - 45°

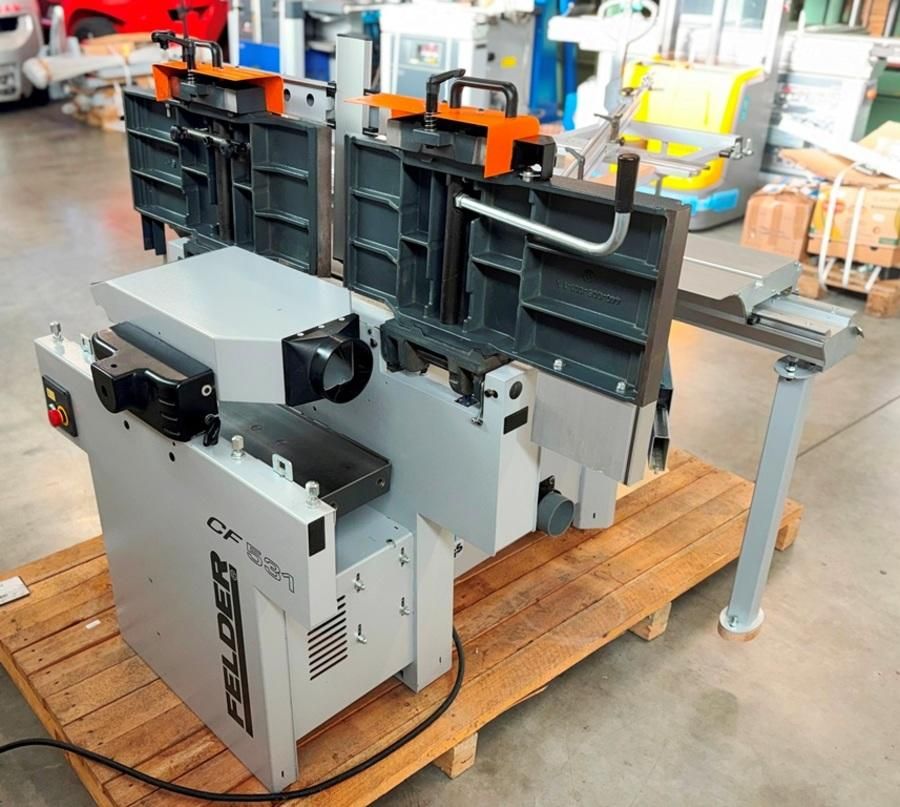

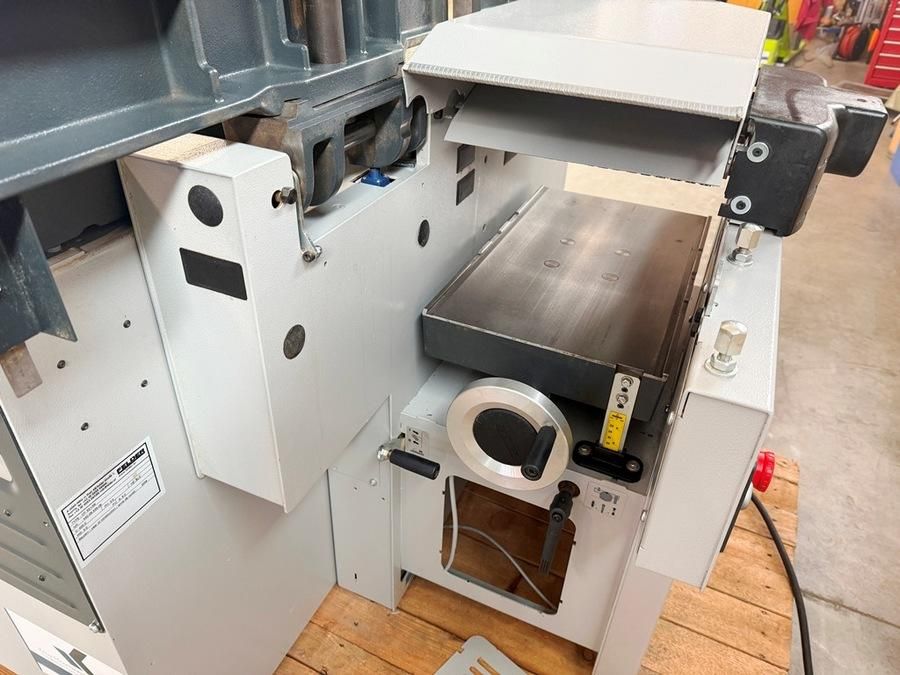

Thicknesser Table length 540 mm
Thicknesser width 306 mm
Thicknesser height 4 - 220 mm
Switchable feed rate 6 m/min

Preparation for long hole drilling support / long hole drilling device
Machine CE-compliant, GS-tested
Technical documentation available as .pdf file
Transport dimensions approx. 2600 x 2120 x 1300 mm LWH
Weight approx. 900 kg
