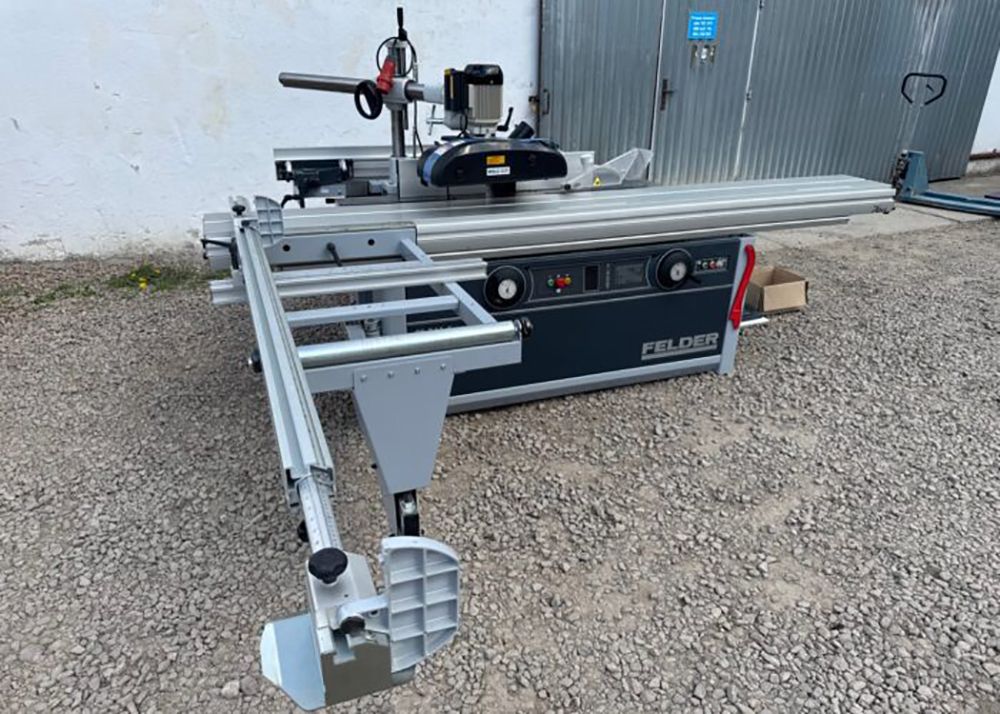

Felder CF741 Professional S

Multifunction Machine
• Sliding Table Saw:
Carriage length: 3200 mm
Scoring Saw
X-Roll carriage guidance system
Saw blade adjustable from 0-45°
Saw blade adjustable up/down
Maximum saw blade diameter: 315 mm
Maximum cutting height: 102 mm
Angle adjustment on the carriage
Extendable fence extension

• Jointer:
Silent-Power spiral shaft
Planing width: 410 mm
Planer blade length: 1650 mm
Angle-adjustable culage
Foldable shaft cover

• Thicknesser
Silent-Power spiral shaft
Planing width: 404 mm
Planing height: 230 mm
2 feed speeds: 6 – 12 m/min

• Moulder Lower spindle:
HOLZTECH 4-roller feed
Spindle feed handle on servomotor
30 mm spindle
4 speeds: 3000/6000/8000/10000 rpm
Maximum tool height: 100 mm
Maximum tool diameter: 220 mm
Fine fence adjustment
Additional spindle for end mills

• Horizontal drill
Drilling length: 250 mm
Maximum tool diameter: 16 mm
Drilling height adjustment range: 135 mm

• Power supply: 400 V
• Motor power: 5.5 kW
• Weight: approx. 1150 kg
